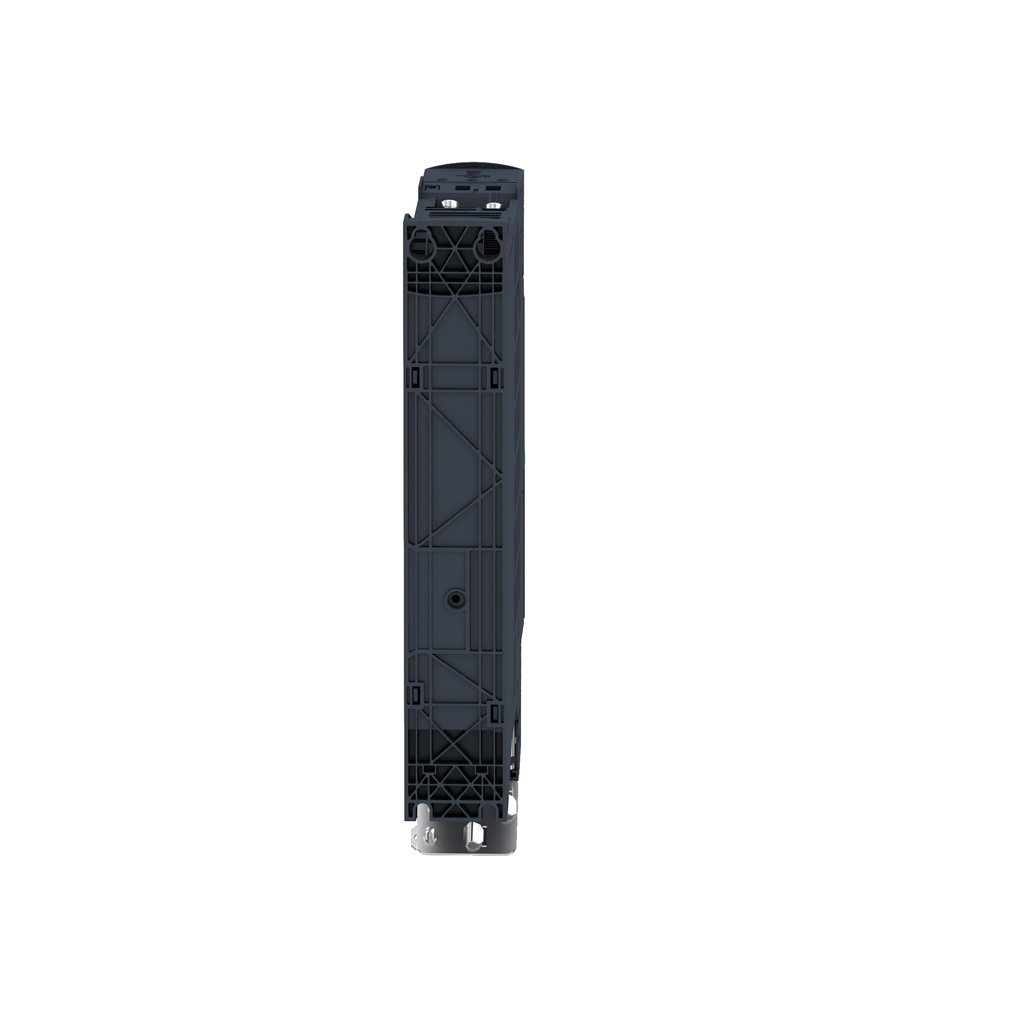

variable speed drive, Altivar Machine ATV320, 0.75kW, 380 to 500V, 3 phases, book | Mayer Electric

Shop SQUARE D at Mayer. Variable speed drive, ATV320, 0.75 kW, 380?500 V, 3 phases, book

Mayer Electric Supply . ATV320U07N4B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product Namevariable speed drive, Altivar Machine ATV320, 0.75kW, 380 to 500V, 3 phases, book | Mayer Electric
UPC3606480966408
Weight2.5
WeightUnitkg
Weight_AttribNet Weight
depth, length245.0
height325.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Variable-speed-drive-ATV320-0-75-kW-380500-V-3-phases-book-785901752783
jsonUrlData20bded02c-4238-48e5-897e-abb200c9cbea
keywordsSQUARE D, Mayer SQUARE D, 785901752783, ATV320U07N4B
length_AttribDepth
moq, multiple, tierMinQty1, Analogue Output Number1
MPNATV320U07N4B
qtyInStock0
SKUSQDATV320U07N4B
snippetShop SQUARE D at Mayer. Variable speed drive, ATV320, 0.75 kW, 380?500 V, 3 phases, book
tierPrice1655.15
width45.0
width_AttribWidth
Prospective Line Isc5 kA
Network Frequency50-60 Hz
Power Dissipation In Wfan 31 W 380 V 4 kHz
Line Current3.6 A 380 V heavy duty) || 2.7 A 500 V heavy duty)
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
4 Quadrant Operation Possible, With Safety Function Safe Stop 1 (Ss1), With Safety Function Safe Torque Off (Sto), Brake Chopper Integrated, With Safety Function Safely Limited Speed (Sls)true
Relative Symmetric Network Frequency Tolerance5 %
Apparent Power2.3 kVA 500 V heavy duty)
Net Weight2.5 kg
With Safety Function Safe Direction (Sdi), With Safety Function Safe Position (Sp), With Safety Function Safely Limited Position (Slp), With Safety Function Safe Operating Stop (Sos), With Sft Fct Safe Stop 2 (Ss2), With Safety Function Safe Brake Management (Sbc/Sbt), With Safety Function Safe Speed Monitor (Ssm), With Safety Function Safe Programmable Logicfalse
Switching Frequency2...16 kHz adjustable || 4...16 kHz with derating factor
Analogue Input Number, Discrete Output Number3
Motor Slip Compensationautomatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
Method Of Accessslave CANopen
Discrete Input Number7
Width45.0 mm
Depth245.0 mm
Maximum Output Frequency0.599 kHz
Height325.0 mm
Acceleration And Deceleration Rampslinear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
Maximum Output Voltage500 V
Base Load Current At High Overload3.0 A
Transient Overtorque170-200 % of nominal motor torque
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Discrete Input Logicpositive logic (source) || negative logic (sink)
Nominal Switching Frequency4 kHz
Braking To Standstillby DC injection
Discrete Input TypeSTO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Protection Typeinput phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Synchronous Motor Control Profilevector control without sensor
Variantstandard version
Format Of The Drivebook
Product Or Component Typevariable speed drive
Ip Degree Of ProtectionIP20
Communication Port ProtocolModbus serial || CANopen
Nominal Output Current2.3 A
Product Specific Applicationcomplex machines
Range Of ProductAltivar Machine ATV320
Motor Power Kw0.75 kW heavy duty
[Us] Rated Supply Voltage380...500 V - 15...10 %
Mounting Modecabinet mount
Emc FilterClass C2 EMC filter integrated
Product CertificationsCE || ATEX || NOM || GOST || EAC || RCM || KC
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
StandardsIEC 61800-5-1
Regulation Loopadjustable PID regulator
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Overvoltage CategoryIII
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Maximum Acceleration Under Shock Impact (During Operation)150 m/s? at 11 ms
Pollution Degree2
Ambient Air Temperature For Operation-10-50 ?C without derating || 50-60 ?C with derating factor
Volume Of Cooling Air9.4 m3/h
MarkingCE || ATEX || UL || CSA || EAC || RCM
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s? at 13...200 Hz
Ambient Air Temperature For Storage, Ambient Air Transport Temperature-25-70 ?C
Operating Positionvertical +/- 10 degree
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Mercury Free, Rohs Exemption InformationYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
UpgradeabilityUpgraded components available
Environmental DisclosureENVPEP1711005EN
Sustainable Offer StatusGreen Premium product
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1711005EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDATV320U07N4B111 @ $655.15
