Parker

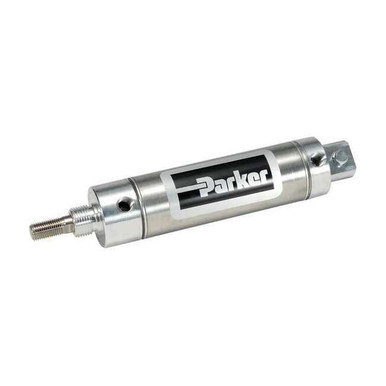

Round Air Cylinder 3/4 Inch Bore 6 Inch Stroke | 49J640 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75DPSR06.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J640
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.4
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width1.5
jsonUrlData924526ffbdad25e5923b
length11
moq, multiple, tierMinQty11
MPN0.75DPSR06.00
qtyInStock18
qtyInStockOverride-2
SKUG6130853
tierPrice139.06
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-6-in-stroke-round-body-double-acting-075dpsr0600/i/G6130853/
Cylinder Action, Single Acting/Double ActingDouble Acting
ItemAir Cylinder
Bore Dia, Air Cylinder Bore Dia3/4 in
Max Pressure250 psi
Body Material304 stainless steel
Rod Dia, Dimension Cc, Dimension Cd0.25 in
Overall Length10.53 in
Rod Thread Length0.5 in
Pivot Hole Dia0.251 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke6 in
Mount, Air Cylinder MountNose and Pivot
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
FeaturesNon-Switch Ready
Nose Mount Thread, Dimension N15/8"-18
Dimension E, Dimension Cb0.38 in
Dimension L0.34 in
Dimension Kk1/4"-28 UNF
Temp Range-10 Degrees to 165 Degrees F
Rod Thread Size1/4-28 UNF
Dimension B0.624 in
End Cap Material, Piston MaterialAluminum
FinishSilver
Dimension A1/2 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG613085311811 @ $39.06
Raptor SuppliesAJ2EBP111 @ $78.97
AmazonSCB01M1DUTMH111 @ $45.58
Applied Industrial10219376311
sustainablesupply.comC16852031-211 @ $50.56
simsupply.comZO-G613085311511 @ $59.86
Radwell0.75DPSR06.0011
