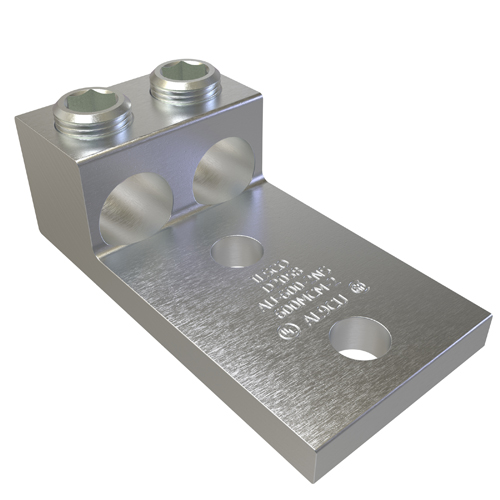

Aluminum Mechanical Lug, Conductor Range 600-2, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . AU-600-2NS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameAluminum Mechanical Lug, Conductor Range 600-2, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA | Mayer Electric
UPC783669005769
Weight0.86
WeightUnitlbs
Weight_AttribWeight
height1.563
height_AttribHeight
jsonUrlData/Product/ILSCO-Aluminum-Mechanical-Lug-Conductor-Range-600-2-2-Ports-2-Holes-1-2in-Bolt-Size-1-3-4in-Hole-Spacing-Tin-Plated-UL-CSA-783669005769
jsonUrlData2ae781851-7fff-4348-8e05-abb200c8ec11
length4.688
length_AttribLength
moq, multiple, tierMinQty1, Number of Poles, Number of Wire Binding Screws per Port, Bag Quantity1
MPNAU-600-2NS
qtyInStock0
SKUILSAU6002NS
tierPrice154.19
width, Tang Width (IN)2.406
width_AttribWidth
Height1.563 in | 39.7002 mm
Length4.688 in | 119.0752 mm
Width2.406 in | 61.1124 mm
ConnectionMechanical
Contains DE-OX?, Direct BurialNo
Mounting Hole TypeThru
Number of Conductors, Number of Mounting Holes, Number of Ports / Wireways, Height BX (IN)2
Conductor TypeStranded
Dimension G (IN)0.625
Drive Size Main, Mounting Bolt/Stud Size1/2
Drive Type MainInternal Hex
Height (mm)39.7002
Length (mm)119.0752
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (IN)0.562
Mounting Hole Diameter (mm)14.2748
Mounting Hole Spacing (IN)1.75
Mounting Hole Spacing (mm)44.45
Tang Length (IN)3.313
Tang Length (mm)84.1502
Tang Thickness (IN)0.438
Tang Thickness (mm)11.1252
Tang Width (mm), Width (mm)61.1124
Weight BX (LB)2.7292
Width BX (IN)6.1875
Conductor MaterialCopper, Aluminum
Connector Finish, Wire Binding Hardware FinishTin
Material, Wire Binding Hardware MaterialAluminum
Wire Binding Screw Size13/16
Wire Binding Torque500
Temperature Rating90?C
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)600 kcmil - 2 Str
ColorSilver
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ROHS IndicatorRES
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
NEMA CodeS-588-3
UPC Code78366900576

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSAU6002NS111 @ $54.19
