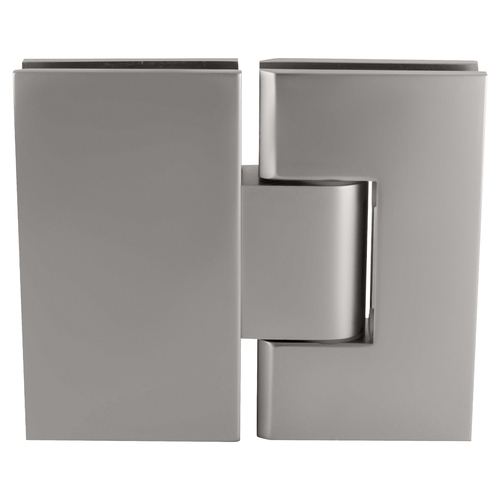

CRL V1E380SC Satin Chrome Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

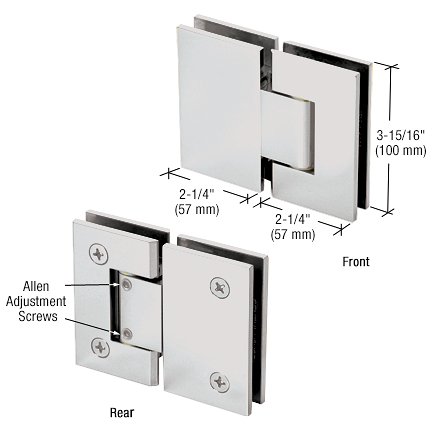

The CRL Adjustable Vienna Series has taken our popular Vienna Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is hung. Simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degrees inward and 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust t

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCR Laurence
CategoryIdL3180 Degree Glass-to-Glass Mount Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
DimensionUnitinch
Extra Product NameCRL V1E380SC Satin Chrome Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
Weight, Maximum Door Weight - 3 Hinges (Pounds)140
WeightUnitlbs
Weight_AttribMaximum Door Weight - 3 Hinges (Pounds)
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNV1E380SC
qtySourceupdateFromUrlEntry
tierPrice1135.8
width2.25
width_AttribWidth
Shipping Weight2 lb (907g)
Width2-1/4" (57 mm)
Height3-15/16
Finish, Finish/ColorSatin Chrome
Mounting TypeGlass To Glass
MaterialBrass
Glazing Thickness3/8, 1/2
Maximum Door Width36
Edge ProfileSquare
Adjustable, Self-CenteringYes
Width - Sidelite Portion (Inches), Width - Door Portion (Inches), Width - Sidelite Portion2-1/4
5 Degree Pre-Set, Positive CloseNo
Maximum Door Weight - 2 Hinges (Pounds)110
Glass To Glass Angle (Degrees)180
Maximum Door Weight - 2 Hinges110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges140 lbs. (63.5 kg)
Width - Door Portion2-1/4 in. (57 mm)
