RXEF135-2 Littelfuse Inc. | Circuit Protection | DigiKey

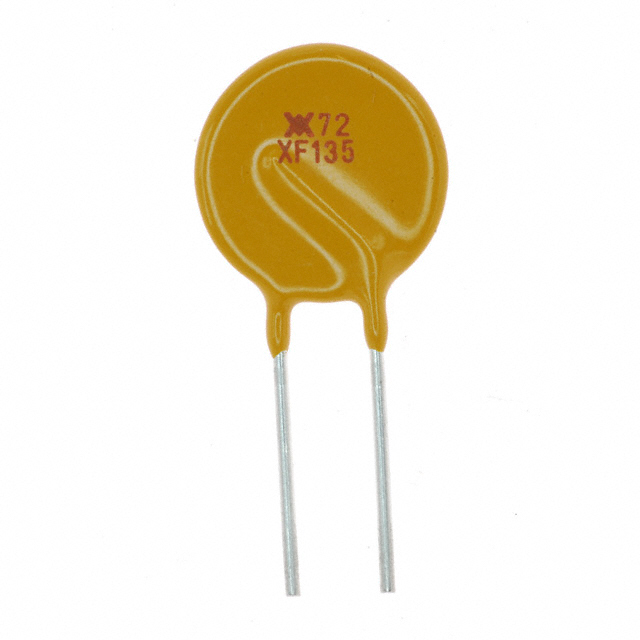

Polymeric PTC Resettable Fuse 72V 1.35 A Ih Through Hole Radial, Disc
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | RXEF135-2 Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, tierMinQty1 | 1 |
| extraShipping, qtyInStock | 0 |
| height | 0.752 |
| height_Attrib | Height - Seated (Max) |
| moq, multiple | 1,500 |
| MPN | RXEF135-2 |
| SKU | 5015927 |
| snippet | Polymeric PTC Resettable Fuse 72V 1.35 A Ih Through Hole Radial, Disc |
| tierMinQty10, tierMinQty6 | 250 |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4 | 50 |
| tierMinQty5, tierMinQty9 | 100 |
| tierMinQty7 | 500 |
| tierPrice1 | 0.6669999999999999 |
| tierPrice10 | 0.34500 |
| tierPrice2 | 0.644 |
| tierPrice3 | 0.62445 |
| tierPrice4 | 0.5257799999999999 |
| tierPrice5 | 0.43642499999999995 |
| tierPrice6 | 0.39674999999999994 |
| tierPrice7 | 0.337249 |
| tierPrice9 | 0.37950 |
| Category | Circuit Protection |
| Series | PolySwitch?, RXEF |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 72V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 1.35 A |
| Current - Trip (It) | 2.7 A |
| Time to Trip | 9.6 s |
| Resistance - Initial (Ri) (Min) | 120 mOhms |
| Resistance - Post Trip (R1) (Max) | 300 mOhms |
| Operating Temperature | -40?C ~ 85?C |
| Ratings, Thickness (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) |
| Height - Seated (Max) | 0.752" (19.10mm) |
| Lead Spacing | 0.199" (5.05mm) |
| Approval Agency | CQC, CSA, TUV, UL |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 5015927 | 1500 | 1500 | 1 @ $0.67, 5 @ $0.64, 10 @ $0.62, 50 @ $0.53, 100 @ $0.44, 250 @ $0.40, 500 @ $0.34 | |
| Newark | 04H8127 | 1 | 1 | ||
| Bisco | RF2697-000 | 1 | 1 | ||
| Newark | 34AC5323 | 1500 | 1500 | 1 @ $0.30, 5000 @ $0.29, 10000 @ $0.27, 20000 @ $0.25, 30000 @ $0.24, 50000 @ $0.23 | |
 iodParts | RXEF135-2 | 1500 | 1500 | 1500 | 1500 @ $0.21 |
| AmazonSC | B00M1VYPH0 | 1 | 1 | ||
| Digi-Key | 5268629 | 10500 | 10500 | 1 @ $0.66, 5 @ $0.64, 10 @ $0.62, 50 @ $0.52, 100 @ $0.43, 250 @ $0.39, 500 @ $0.33 | |
 Mouser | 650-RXEF135-2 | 1 | 1430 | 1 | 1 @ $0.55, 10 @ $0.45, 100 @ $0.34, 1000 @ $0.26, 10000 @ $0.22 |
| Verical | RXEF135-2 | 26 | 123 | 1 | 26 @ $0.24, 1000 @ $0.24, 10000 @ $0.24 |
| TTI | RXEF135-2 | 1 | 1 | ||
| Digi-Key | 3592682 | 10500 | 10500 | 1 @ $0.66, 5 @ $0.64, 10 @ $0.62, 50 @ $0.52, 100 @ $0.43, 250 @ $0.39, 500 @ $0.33 |
