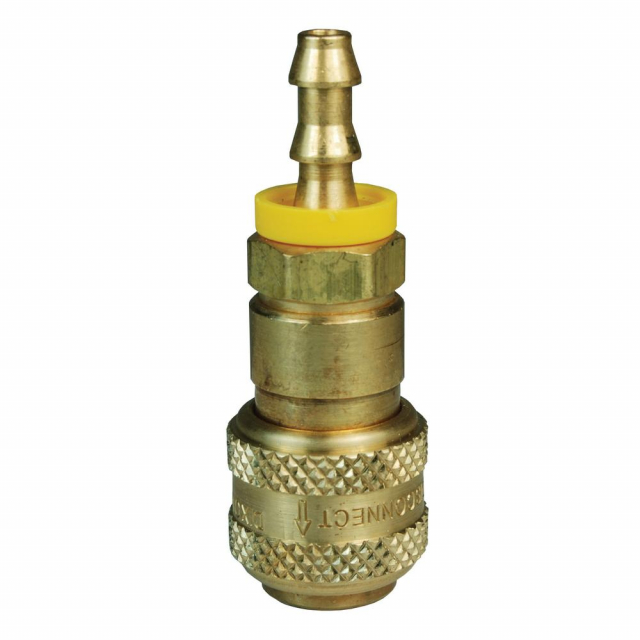

Dixon 2DB3-B D-Series Pneumatic Automatic Push-Loc Hose Barb Coupler | MROSupply.com

Dixon, 2DB3-B, DF-Series 1/4" Brass Industrial Automatic Coupler 3/8" Push-On Hose Barb Specifications Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst Construction Machined components are manufactured using solid bar stock Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life Nitrile (Buna-N) seals are standard Steel componentry is plated using ROHS Compliant Trivalent Chrome Steel tubular valve Compatibility & Interchange Data Foster 3, 4, 5 and 6 Series Parker 30 - Series Automatic Interchange Hansen 3000, 4000, 5000 and 6000 How it works To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted After the line is fully exhausted, you are able to safely separate the nipple from the coupler
