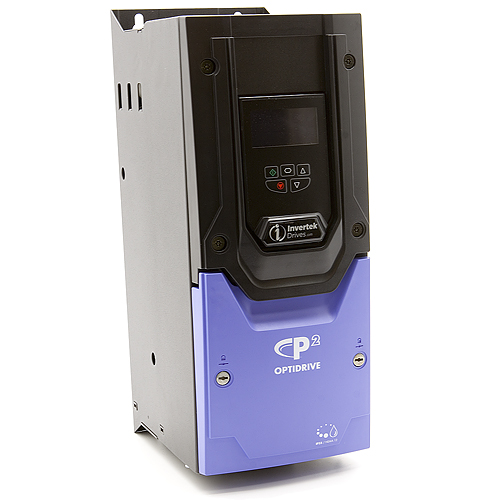

Invertek ODP-2-52020-3HF4N-MN 15kW 20Hp 61A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD - MROSupply.com

The ODP-2-52020-3HF4N-MN is produced by Invertek and is described as a Invertek ODP-2-52020-3HF4N-MN 15kW 20Hp 61A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD

Invertek . ODP-2-52020-3HF4N-MN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODP-2-52020-3HF4N-MN 15kW 20Hp 61A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD - MROSupply.com
Voltage, Input voltage200 / 240V
Weight25
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length10.6
height21.3
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODP-2-52020-3HF4N-MN
qtyInStock0
SKU6092950
tierPrice12884.39
width13.779527559055119
width_AttribPackaged dimensions width
Frame, Drive dimensions size5
Height21.3 in
Depth10.6 in
Rated power15 kW/20 HP
Phase, Input phases3
Width (in)9.3
Supply fuse or MCB (type B)80 A
Packaged dimensions depth375 mm (14.76 in)
Supply current continuous70.2 A
Supply voltage200-240 V
Max motor cable size, Max supply cable size35 mm? (0.05 in?)
Brake transistorInternal
Packaged dimensions height595 mm (23.43 in)
Output current60 A
Drive dimensions fixings4 x M8
Drive dimensions depth270 mm (10.63 in)
EMC filterInternal EMC
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height540 mm (21.26 in)
Packaged dimensions weight25 kg (55.12 lbs)
DisplayTFT display
Drive dimensions weight23 kg (50.71 lbs)
Motor output rating15 kW (20 HP)
Drive dimensions width235 mm (9.25 in)
PCB coatingStandard
EnclosureIP55
Packaged dimensions width350 mm (13.78 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092950111 @ $2884.39
driveswarehouse.comODP-2-52020-3HF4N-MN1-211 @ $2884.39
