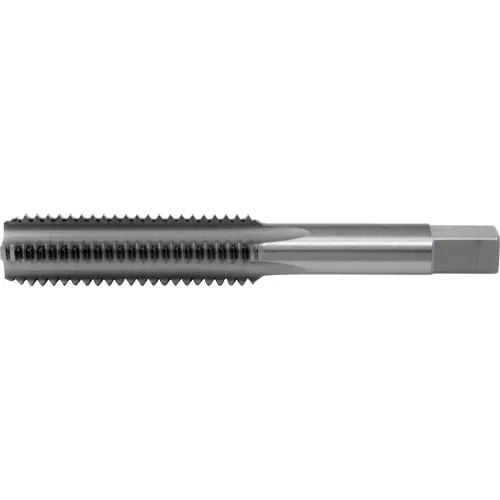

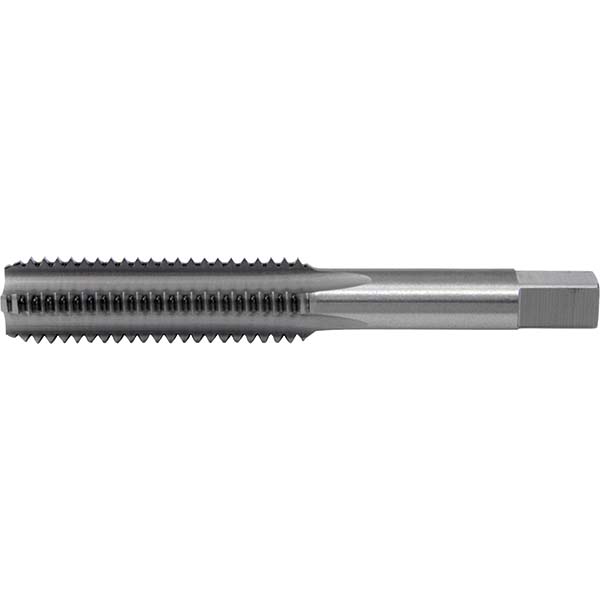

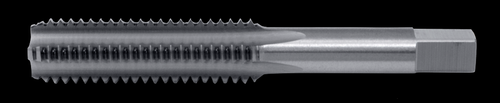

Straight Flute Hand Tap , 1/4"-28 , Bottoming , 4 Flutes, UNF
Bottoming chamfer hand tap. 1 - 2 incomplete threads before cutting. Used in all types of hand and machine tool operations for ferrous and non-ferrous materials. Ground thread for better surface finish and tighter tolerances. Best used for tapping a blind hole and when threading is need closer to the bottom of a blind hole. Manufactured from high-speed steel. Use for tapping in carbon steel, alloy steel, stainless steel, cast iron, aluminum and non-ferrous materials. Made in the USA.
Gallery
Attributes
| Brand name, Manufacturer name, Label, Publisher, Studio | Cle-Line |
|---|---|
| Manufacturer | Cle-Line Greenfield Industries |
| CategoryId, CategoryIdL4 | 16408 |
| CategoryIdL1, CategoryIdL2 | 2 |
| CategoryIdL3 | 6062 |
| CategoryL1 | Tools & Machining |
| CategoryL2 | Cutting Tools |
| CategoryL3 | Taps |
| CategoryL4 | Straight Flute 4-Flute Taps |
| DimensionUnit | inch |
| GraingerSku | 407D96 |
| Extra Product Name | Straight Flute Hand Tap , 1/4"-28 , Bottoming , 4 Flutes, UNF |
| UPC | 697334007401 |
| UnitOfMeasure | EA |
| Weight | 0.05 0.03 1.00 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligible | False |
| countryOfOrigin | US |
| height | 0.2 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 2.9 |
| moq, multiple, tierMinQty1, Number of Pieces, Item_package_quantity, NumberOfItems, PackageQuantity | 1 |
| MPN, Keyword, Mpns, PartNumber, Part_number, StrippedMpns | C00740 |
| qtyInStock | 98 |
| qtyInStockOverride | -2 |
| SKU | G1859501 |
| tierPrice1 | 6.89 |
| url | https://www.zoro.com/cle-line-straight-flute-hand-tap-14-28-bottoming-4-flutes-unf-c00740/i/G1859501/ |
| width | 0.4 |
| Tap Thread Size, Thread Size | 1/4"-28 |
| Shank Dia | Shank Dia.: 0.255" |
| Tap Size | 1/4" |
| Tap Dimension Type, Measurement_system | Inch |
| Overall Length | 2-1/2" |
| Thread Length | 1" |
| Pitch Diameter Limit | H2 |
| 55% Thread Drill Size | 5.70 mm |
| Shank Length | 1 1/2 in |
| 65% Thread Drill Size | 7/32 in |
| Square Size | 0.1100 in |
| 75% Thread Drill Size | 5.45 mm |
| Tap Length Standard | USCTI |
| Item | Straight Flute Hand Tap |
| Tap Material, Material, MaterialType | High Speed Steel |
| Tap Chamfer | Bottoming |
| Number of Flutes | 4 |
| Tap Thread Type | UNF |
| Tap Style | Straight Flute (Hand) |
| Tap Finish | Bright |
| Standards | USCTI Table 302 |
| Thread Direction | Right Hand |
| ASIN, Asin | B07C7HBDQL |
| Amount | 18.99 |
| Binding | Misc. |
| Brand | Cle-line |
| Bullet_point | Shank Configuration: Straight w/ Square Surface Condition:Bright Thread Form:Metric Tool Size:M16x2.0 Tool Type: Spiral Point Plug Extension Tap |
| ClassificationId | 256326011 |
| Currency, CurrencyCode | USD |
| DisplayName | Hand Threading Taps |
| Height | 0.37 1.48 1200 15 500 75 |
| Identifier | 0697334007401 697334007401 |
| IdentifierType | EAN UPC |
| IsDeadAsin | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name, Title | Cle-Line, Style 0403, C00740, 1/4-28UNF, GH2, 4-Flute, Bottoming, HSS, Hand Tap, Bright Finish ( Pack Qty: 1) |
| Item_type_keyword | hand-threading-taps |
| Item_weight | 0.03 |
| Length | 2.36 6.0 |
| Link | https://m.media-amazon.com/images/I/21DNTTxYPlL._SL75_.jpg https://m.media-amazon.com/images/I/21DNTTxYPlL.jpg https://m.media-amazon.com/images/I/41N37YPkudL.jpg |
| List_price | 9.47 |
| ProductCategoryId | 256326011 biss_display_on_website |
| ProductGroup, WebsiteDisplayGroupName | Home Improvement |
| ProductType, ProductTypeName | TOOLS |
| Product_description | Hand tap, 1/4" tap size, 28 threads per inch, UNF, bottoming chamfer, HSS, 4-flute, GH2 H-limit, bright finish, 1" length of thread, 2-1/2" overall length, USCTI table 302 tap dimensions. This tap is for general purpose, blind hole applications and to thread close to an obstruction. |
| Product_site_launch_date | 2018-04-16T19:01:08.778Z |
| Rank | 1428345 3813 |
| Type | ean upc |
| URL | https://m.media-amazon.com/images/I/31eL1dOfRPL._SL75_.jpg |
| Unit | inches pounds |
| Units | inches pixels pounds |
| Variant | MAIN |
| WebsiteDisplayGroup | home_improvement_display_on_website |
| Width | 0.17 0.37 1200 500 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G1859501 | 1 | 98 | 1 | 1 @ $6.89 |
| C00740 | 1 | 1 | 1 @ $5.10 | ||
| WBB2682928 | 3 | -2 | 3 | 1 @ $7.40 | |
| sustainablesupply.com | C2974405 | 1 | -2 | 1 | 1 @ $11.23 |
| C00740 | 20 | -2 | 6 | 1 @ $5.10 | |
| C00740 | 1 | -2 | 1 | 1 @ $6.27 | |
 simsupply.com | ZO-G1859501 | 1 | 42 | 1 | 1 @ $13.85 |
| 14287072 | 6 | -2 | 6 | 1 @ $12.34 | |
 imsbolt.com | C00740 | 1 | -2 | 1 | 1 @ $11.40 |
 MRO Supply | 6126654 | 8 | 8 | 1 @ $6.92 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Cle-Line, Style 0403, C00740, 1/4-28UNF, GH2, 4-Flute, Bottoming, HSS, Hand Tap, Bright Finish ( Pack Qty: 1)
Brand: Cle-line
Hand tap, 1/4" tap size, 28 threads per inch, UNF, bottoming chamfer, HSS, 4-flute, GH2 H-limit, bright finish, 1" length of thread, 2-1/2" overall length, USCTI table 302 tap dimensions. This tap is for general purpose, blind hole applications and to thread close to an obstruction.
Details
- Tool Size:M16x2.0
- Thread Form:Metric
- Shank Configuration: Straight w/ Square
- Tool Type: Spiral Point Plug Extension Tap
- Surface Condition:Bright
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | TOOLS |
| Part number | C00740 |
| Items per pack | 1 |
| Label | Cle-Line |
| Manufacturer | Cle-Line |
