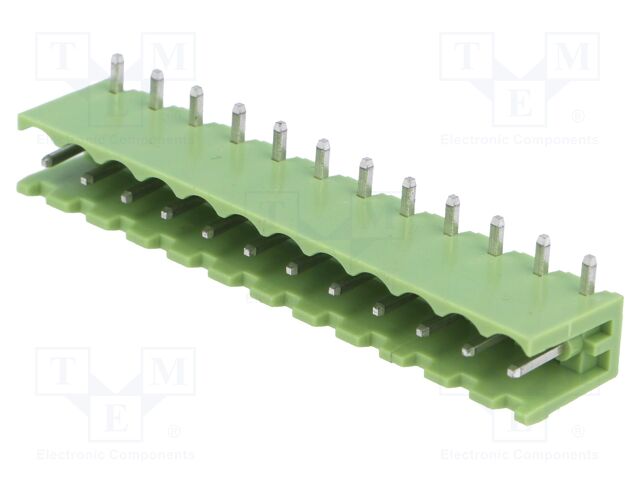

XINYA XY2500R-C(5.08)-12PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 12; socket
XINYA XY2500R-C(5.08)-12PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 12; socke
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500R-C(5.08)-12PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 12; socket |
| atoms | 1 |
| height | 8.4 |
| height_Attrib | Height |
| jsonUrlData | 69d440205e7a3523d9fb78db636b8f9b. |
| jsonUrlData2 | 3e9ebcad487271a20902 |
| keywords | XINYA, XY2500R-C(5.08)-12PIN, TBG-5-KB-12P-GN |
| moq, multiple, tierMinQty1 | 5 |
| MPN | XY2500R-C(5.08)-12PIN |
| qtyInStock | 399 |
| SKU | TBG-5-KB-12P-GN |
| snippet | XINYA XY2500R-C(5.08)-12PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 12; socke |
| tierMinQty2 | 25 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 2000 |
| tierPrice1 | 0.608 |
| tierPrice2 | 0.552 |
| tierPrice3 | 0.496 |
| tierPrice4 | 0.46 |
| tierPrice5 | 0.441 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways, Number of pins | 12 |
| Spatial orientation | angled 90? |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Connector pinout layout | 1x12 |
| Current rating | 12A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | friction lock |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Connector variant | without side walls |
| Height | 8.4mm |
| Connectors features | assembling possibility |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5-KB-12P-GN | 5 | 399 | 5 | 5 @ $0.61, 25 @ $0.55, 100 @ $0.50, 500 @ $0.46, 2000 @ $0.44 |
