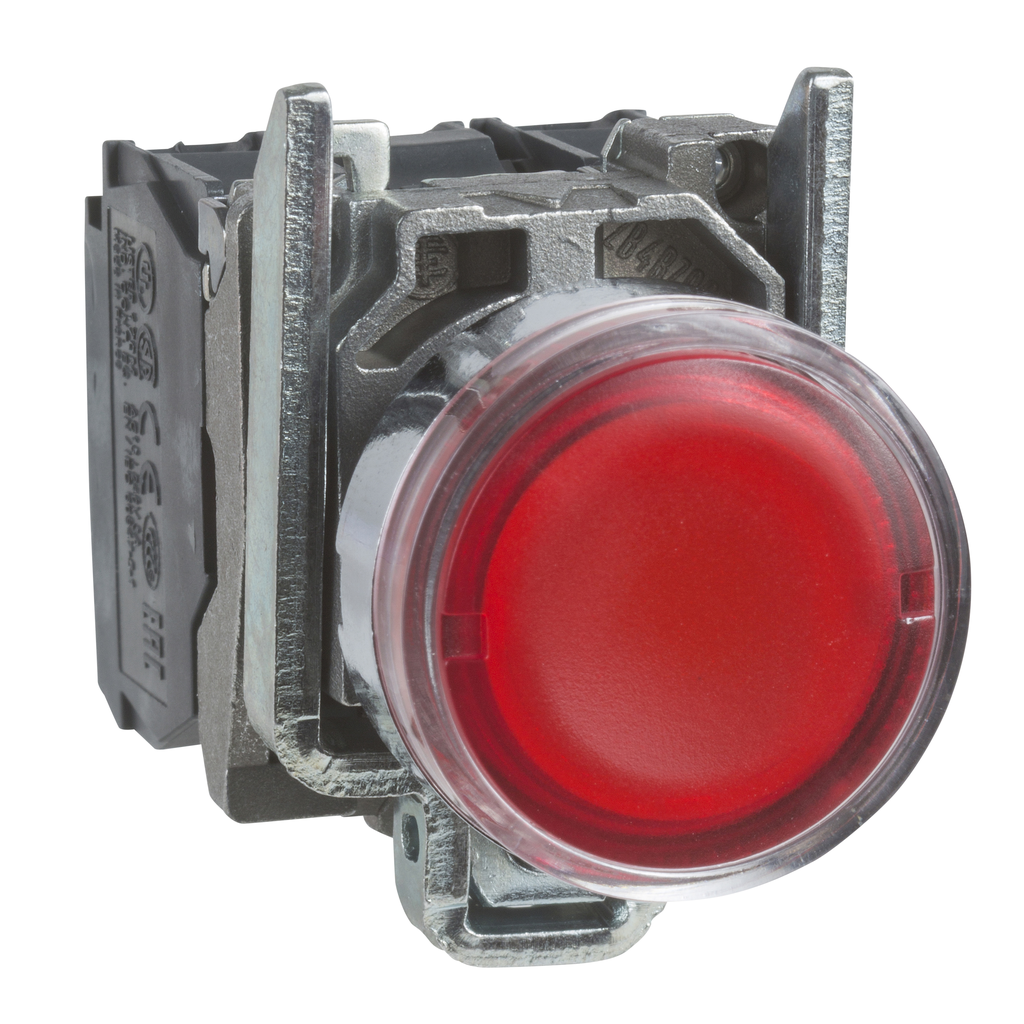

As an Amazon Associate, we earn from qualifying purchases. Home » SQUARE D » SQDXB4BW3465 Harmony XB4, Illuminated push button, metal, flush, red, ?22, spring return, SQUARE D . SQDXB4BW3465 Gallery Attributes Brand name, Manufacturer name, ManufacturerSQUARE D DimensionUnitmm Extra Product NameHarmony XB4, Illuminated push button, metal, flush, red, ?22, spring return, UPC3389110887310 Weight0.097 WeightUnitkg Weight_AttribNet Weight depth, length57.0 height47.0 height_AttribHeight jsonUrlData/Product/SQUARE-D-Harmony-XB4-Illuminated-push-button-metal-flush-red-Ø22-spring-return-250-V-1-NO-1-NC-3389110887310 length_AttribDepth moq, multiple, Sale Per Indivisible Quantity1 MPN, SKUSQDXB4BW3465 qtyInStock0 width30.0 width_AttribWidth Operator Additional Informationwith plain lens Range Of ProductHarmony XB4 Light Sourcebulb not included Mounting Diameter22 mm Type Of Operatorspring return Product Or Component Typeilluminated push-button Shape Of Signaling Unit Headround Fixing Collar Materialzamak Head Typestandard Contacts Type And Composition1 NO + 1 NC Bezel Materialchromium plated metal Contact Operationslow-break Operator Profilered flush Device Short NameXB4 Bulb BaseBA 9s Warranty18 months Contacts Usagestandard contacts Height47 mm Terminals Description Iso N?1(21-22)NC || (13-14)NO Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1 Operating Force3.5 N NC changing electrical state || 3.8 N Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) Contacts Materialsilver alloy (Ag/Ni) Positive Openingwith EN/IEC 60947-5-1 appendix K [Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1 Net Weight0.097 kg [Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1 Device Presentationcomplete product Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m [Ui] Rated Insulation Voltage600 V 3)EN/IEC 60947-1 Signalling Typesteady Mechanical Durability10000000 cycles Width30 mm Depth57 mm Tightening Torque0.8-1.2 N.m EN 60947-1 Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes Environmental DisclosureENVPEP1808008EN Sustainable Offer StatusGreen Premium product Reach RegulationFree of Substances of Very High Concern above the threshold California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. China Rohs RegulationX Circularity ProfileENVEOLI1808008EN Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope) Product CertificationsUL Listed || GL || CSA || LROS (Lloyds register of shipping) || DNV || BV Ik Degree Of ProtectionIK06 IEC 50102 Ambient Air Temperature For Operation-40-55 ?C StandardsEN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-1 Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6 Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K Ambient Air Temperature For Storage-40-70 ?C Nema Degree Of ProtectionNEMA 13 || NEMA 4X Electrical Shock Protection Classclass I IEC 60536 Protective TreatmentTH Distributor offers SellerSKUMOQIn stockMultiplePrices mayerelectric.comSQDXB4BW346511
