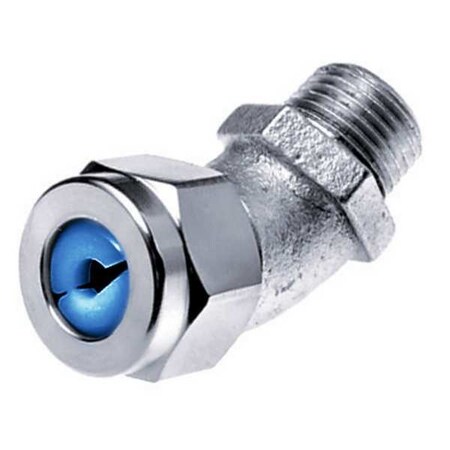

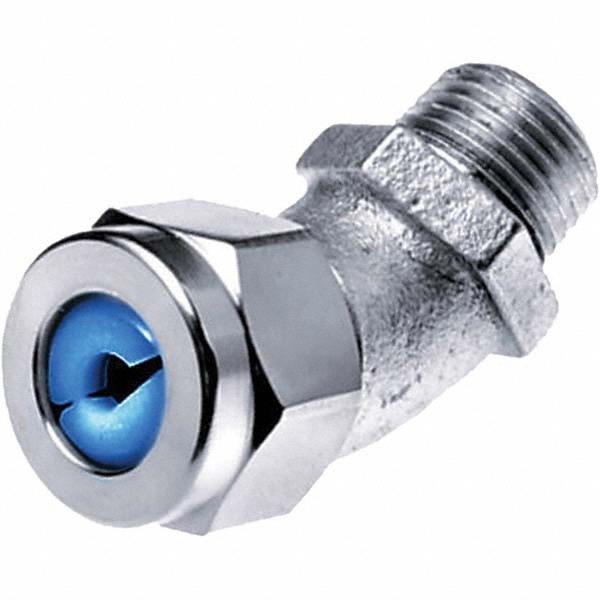

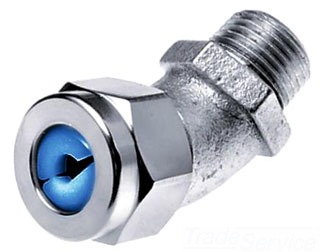

Cord Connector,1/2 in.,45,Blue

Liquid Tight Cord Connector, Cord Dia. Range 0.38 in to 0.50 in, Box Connection 1/2 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Blue, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 45 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 in, Insulated No

Hubbell Wiring Device-Kellems . VHC1023ZP

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHubbell Wiring Device-Kellems
CategoryId, CategoryIdL46791
CategoryIdL123
CategoryIdL24529
CategoryIdL34520
CategoryL1Electrical Supplies
CategoryL2Cable Management
CategoryL3Cord Grips
CategoryL4Strain Relief Connector
DimensionUnitinch
GraingerSku5D984
Extra Product NameCord Connector,1/2 in.,45,Blue
UPC783585211831
UnitOfMeasureEA
Weight0.3
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height, length2
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
MPNVHC1023ZP
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG2349630
tierPrice1156.99
urlhttps://www.zoro.com/hubbell-wiring-device-kellems-cord-connector-12-in-45-blue-vhc1023zp/i/G2349630/
width1.5
Hub Size1/2 in MNPT
Cord Dia Range0.38 in to 0.50 in
Hub Trade Size1/2"
Length - Box to End of Connector2 in
Length1.90"
Min Throat Dia0.57"
Length - External Strain ReliefNo External Strain Relief
Form SizeF2
Thread Size, Compatible Conduit Trade Size1/2 in
Dimension E A/C1.24" (31.5)
Recommended Knockout Hole Size.86"- .91" (21.8-23.0)
Cord Diameter Range.38"- .50" (9.7- 12.7)
Dimension A1.97" (50.0) Ref.
Dimension G A/F1.13" (28.6)
Dimension C.55" (14.0)
Dimension E A/F1.06" (26.9)
Dimension D.57" (14.4) Throat Dia.
Dimension B1.90" (48.3) Ref.
Dimension G A/C1.27" (32.3)
Display Size1/2" NPT
Item - Cord Connector, ItemLiquid Tight Cord Connector
Male/FemaleMale

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2349630111 @ $156.99
gordonelectricsupply.comVHC1023ZP1-211 @ $38.07
Raptor SuppliesAE3FQD111 @ $45.62
House of electricalVHC1023ZP11
sustainablesupply.comC28898081-211 @ $21.10
Newark35B2310111 @ $56.05, 25 @ $53.49, 50 @ $52.07, 100 @ $50.36, 250 @ $48.65
RadwellVHC1023ZP1211 @ $26.00
grainger.caHBLVHC1023ZP111 @ $130.94
cbtcompany.comVHC1023ZP11
GalcoVHC1023ZP-HBBL111 @ $40.59
National Supply Network977769341-211 @ $22.90
MRO Supply1034289111 @ $39.43
