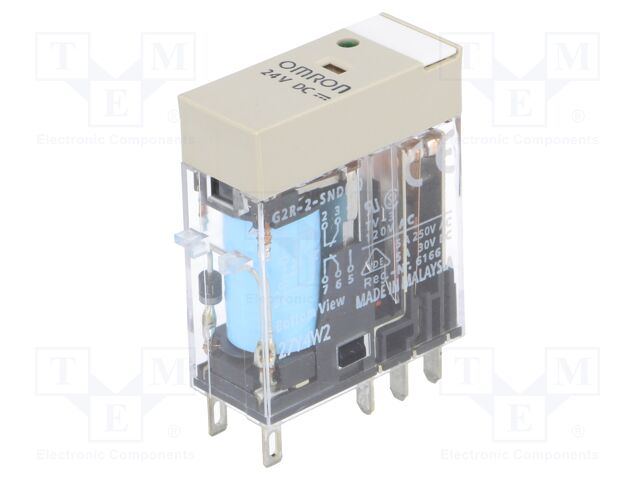

OMRON G2R-2-SND 24VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 5A
OMRON G2R-2-SND 24VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 5
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Industrial Electromagnetic Relays |
| Extra Product Name | OMRON G2R-2-SND 24VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 5A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 65b5467861b9955a4098539c95c00ec6. |
| jsonUrlData2 | fa2502aaefddb731beca |
| keywords | OMRON, G2R-2-SND 24VDC (S), G2R-2-SND-24DC, Relays and Contactors, Relays, Electromagnetic Relays, Industrial Electromagnetic Relays |
| MPN | G2R-2-SND 24VDC (S) |
| qtyInStock | 286 |
| SKU | G2R-2-SND-24DC |
| snippet | OMRON G2R-2-SND 24VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 5 |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierPrice1 | 9.25 |
| tierPrice2 | 8.79 |
| tierPrice3 | 8.1 |
| tierPrice4 | 7.4 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 5A |
| AC contacts rating @R | 5A / 250V AC |
| DC contacts rating @R | 5A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | industrial, |
| Mounting | socket |
| Relay series | G2R-2-S |
| Operating temperature | -40...70?C |
| Body dimensions | 29x13x35.5mm |
| Coil resistance | 1.1k? |
| Operate time | 15ms |
| Release time | 20ms |
| Coil current | 46.5mA |
| Contact resistance | 30m? |
| Coil power consumption | 530mW |
| Switching capacity | 150W, |
| Terminal pitch | 5mm |
| Related items | P2R-08A, |
| Indication | LED |
| Design | protection diode |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-2-SND-24DC | 1 | 286 | 1 | 1 @ $9.25, 5 @ $8.79, 20 @ $8.10, 100 @ $7.40 |
