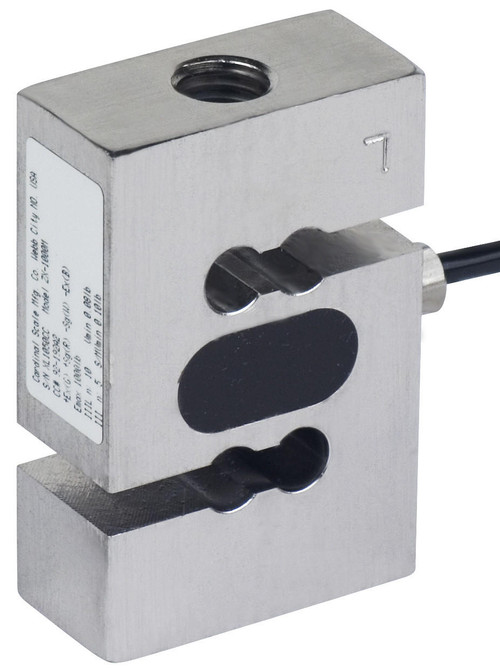

Cardinal Detecto ZX-15,000 15,000 lb Stainless Steel S-Beam Load Cell, NTEP - Scales Plus

Buy the top selling Detecto ZX-15,000 from Scales Plus and receive free product support from our trained technicians for life!

Detecto . ZX-15,000

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDetecto
DimensionUnitinch
Extra Product NameCardinal Detecto ZX-15,000 15,000 lb Stainless Steel S-Beam Load Cell, NTEP - Scales Plus
height5.5
height_AttribHeight
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length4.0
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKU, ModelZX-15,000
qtyInStock0
snippetBuy the top selling Detecto ZX-15,000 from Scales Plus and receive free product support from our trained technicians for life!
tierPrice11260.9
width1.7
width_AttribWidth
NTEPYes
NTEP CC#92-192A2
CertificationNTEP Approved Class III 1:5000 and IIIL 1:10,000
Capacity15,000 lb
Safe Overload150% capacity
Ultimate Overload300% capacity
Length4"
Height5.5"
Width1.7"
Hole Threading1????-14 NF
Metric Threading (if requested)Not Available
ConstructionStainless steel
Cable Color CodeGreen = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
Rated Excitation5-10 VDC (maximum of 15 V)
Full Scale Output3 mV/V ? 0.1%
Excitation Terminal Resistance389 ? 20 ohms
Signal Terminal Resistance350 ? 5 ohms
Insulation Resistance5000 megohms
Seal TypeWelded seal
IP RatingIP67
Cable Length30 ft

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.comZX-15,000111 @ $1260.90
