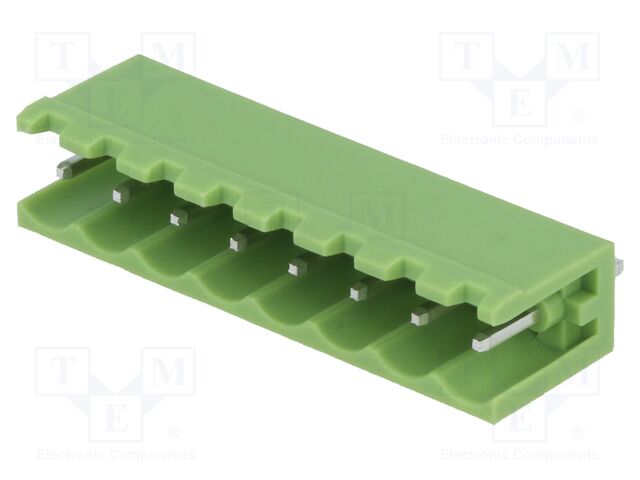

XINYA XY2500V-A(5.0)-8P | Pluggable terminal block; Contacts ph: 5mm; ways: 8; straight
XINYA XY2500V-A(5.0)-8P | Pluggable terminal block; Contacts ph: 5mm; ways: 8; straigh
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500V-A(5.0)-8P | Pluggable terminal block; Contacts ph: 5mm; ways: 8; straight |
| atoms | 1 |
| height | 12.0 |
| height_Attrib | Height |
| jsonUrlData | 6d2e05e8e6db5da65200a529cef03f3c. |
| jsonUrlData2 | 2874b32148675de8f5b2 |
| keywords | XINYA, XY2500V-A(5.0)-8P, TBG-5.0-PB-8P |
| moq, multiple, tierMinQty1 | 5 |
| MPN | XY2500V-A(5.0)-8P |
| qtyInStock | 406 |
| SKU | TBG-5.0-PB-8P |
| snippet | XINYA XY2500V-A(5.0)-8P | Pluggable terminal block; Contacts ph: 5mm; ways: 8; straigh |
| tierMinQty2 | 20 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 1000 |
| tierPrice1 | 0.262 |
| tierPrice2 | 0.225 |
| tierPrice3 | 0.2 |
| tierPrice4 | 0.187 |
| tierPrice5 | 0.164 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5mm |
| Number of ways, Number of pins | 8 |
| Spatial orientation | straight |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Current rating | 15A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | friction lock |
| Connector pinout layout | 1x8 |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Connector variant | without side walls |
| Height | 12mm |
| Connectors features | assembling possibility |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5.0-PB-8P | 5 | 406 | 5 | 5 @ $0.26, 20 @ $0.23, 100 @ $0.20, 500 @ $0.19, 1000 @ $0.16 |
