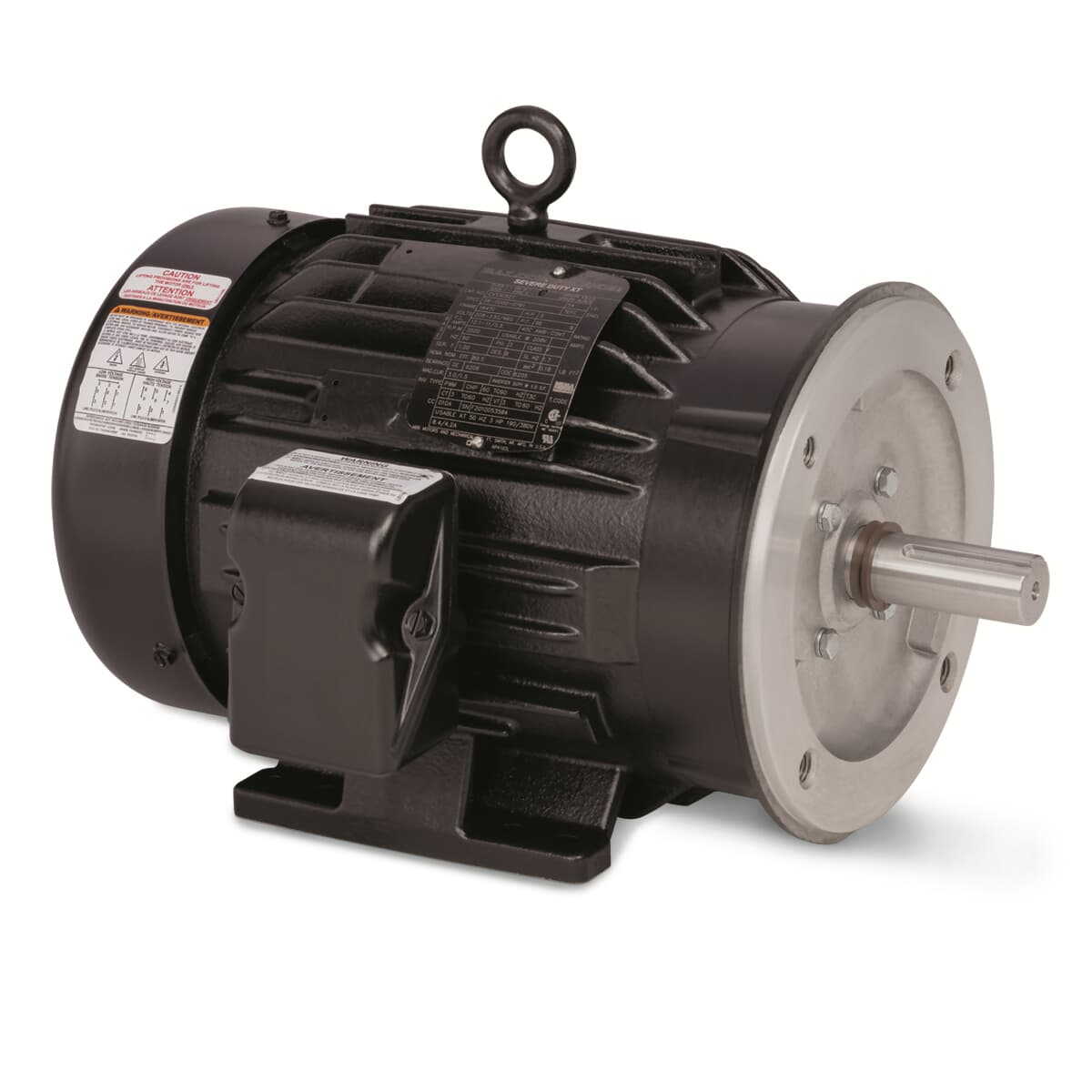

Baldor CXT3052T Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 5RPM: 3500Volts: 230/460Amps: 5.5/12.1/11Hz: 60Phase: 3Frame: 184TCEnclosure Material: IronMounting: C-Face/RigidShaft Diameter: 1.125"Overall Length: 15.98"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.00Efficiency: 89.5%Maximum Ambient Temperature: 40? CInsulation Class: FDuty
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor CXT3052T Three Phase Severe Duty XT Motor |
| Voltage, Volts | 230/460 |
| Weight | 115 |
| WeightUnit | lbs |
| diameter, height, width | 1.125 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 15.98 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | CXT3052T |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 1060.77 |
| Product Type | Three Phase |
| HP | 5 |
| RPM | 3500 |
| Amps | 5.5/12.1/11 |
| Hz | 60 |
| Phase | 3 |
| Frame | 184TC |
| Enclosure Material | Iron |
| Mounting | C-Face/Rigid |
| Shaft Diameter | 1.125" |
| Overall Length | 15.98" |
| Rotation | Reversible |
| Service Factor | 1.00 |
| Efficiency | 89.5% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 06-0000-0820 |
| Ship Weight | 115 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| CXT3052T | 1 | -2 | 1 | 1 @ $1060.77 |
