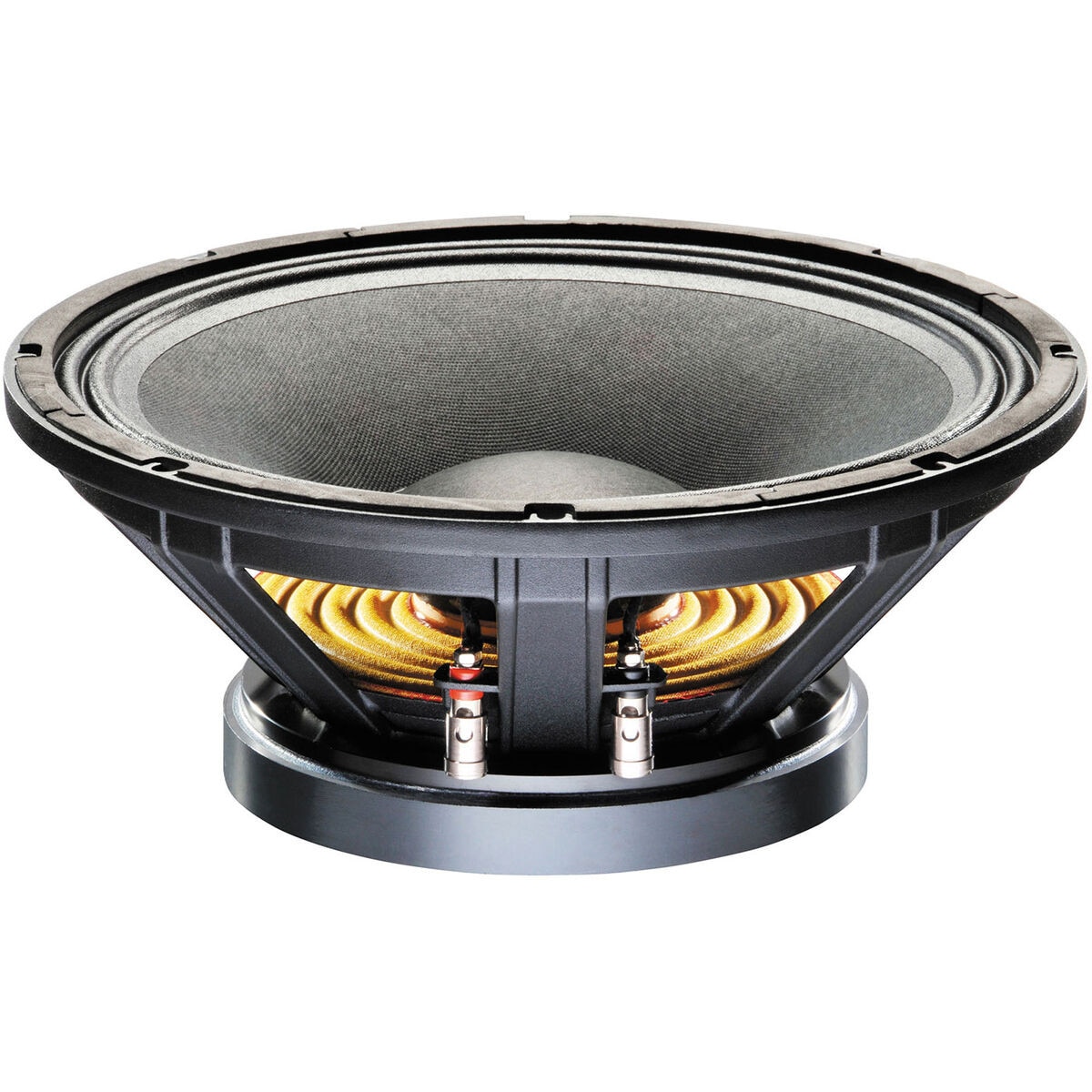

Celestion FTR12-3070C 12" Professional Cast Frame Speaker 350W

Celestion FTR12-3070C 12" Professional Cast Frame Speaker 350W. Part Number: 294-2000 by Celestion.

Celestion . FTR12-3070C

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCelestion
DimensionUnitinch
Extra Product NameCelestion FTR12-3070C 12" Professional Cast Frame Speaker 350W
UPC739894564458
Weight16
WeightUnitlbs
depth, length4.02
diameter, height, width12.5
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFTR12-3070C
qtyInStockOnly 2 In Stock
SKU, Part Number294-2000
snippetCelestion FTR12-3070C 12" Professional Cast Frame Speaker 350W. Part Number: 294-2000 by Celestion.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8?
Frequency Response40 to 4,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs), Vented F365.1Hz
DC Resistance (Re)5.59?
Voice Coil Inductance (Le)1.09mH
Mechanical Q (Qms)2.8
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)1.54ft?
Mechanical Compliance of Suspension (Cms)0.01mm/N
BL Product (BL)18.58T?m
Diaphragm Mass Inc Airload (Mms)54.61g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)531.3cm?
Cone MaterialPaper / Glass Fiber
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.5"
Baffle Cutout Diameter11.26"
Depth4.02"
# Mounting Holes8
Sealed Volume0.85ft?
Sealed F3172Hz
Vented Volume1.63ft?

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com294-20001Only 2 In Stock1
