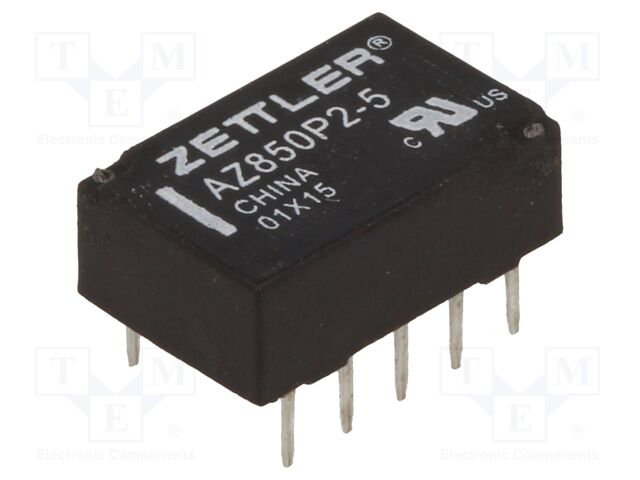

ZETTLER AZ850P2-5 | Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PCB
ZETTLER AZ850P2-5 | Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ850P2-5 | Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | a94643a3269e2a9ea8cff45f1539d7b7. |
| jsonUrlData2 | 580a8b748f853774135a |
| keywords | ZETTLER, AZ850P2-5, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ850P2-5 |
| qtyInStock | 3072 |
| snippet | ZETTLER AZ850P2-5 | Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 2.9 |
| tierPrice2 | 2.51 |
| tierPrice3 | 2.26 |
| tierPrice4 | 1.9 |
| tierPrice5 | 1.68 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 5V DC |
| Contact current max | 1A |
| AC contacts rating @R | 0.5A / 125V AC |
| DC contacts rating @R | 1A / 30V DC |
| Switched voltage | max. 220V DC, |
| Relay variant | bistable, |
| Mounting | PCB |
| Coil resistance | 125? |
| Coil voltage min | 3.5V DC |
| Coil voltage max | 12.5V DC |
| Operate time, Release time | 2ms |
| Body dimensions | 14x9x5mm |
| Coil power consumption | 169mW |
| Mechanical durability | 100000000 cycles |
| Operating temperature | -55...90?C |
| Relay series | AZ850 |
| Contact resistance | 70m? |
| Case | DIP10 |
| Switching capacity | 30W, |
| Soldering temperature | 250?C |
| Terminal pitch | 2.54mm |
| Design | two coils |
| Test voltage | 1.5kV |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ850P2-5 | 1 | 3072 | 1 | 1 @ $2.90, 5 @ $2.51, 25 @ $2.26, 100 @ $1.90, 500 @ $1.68 |
