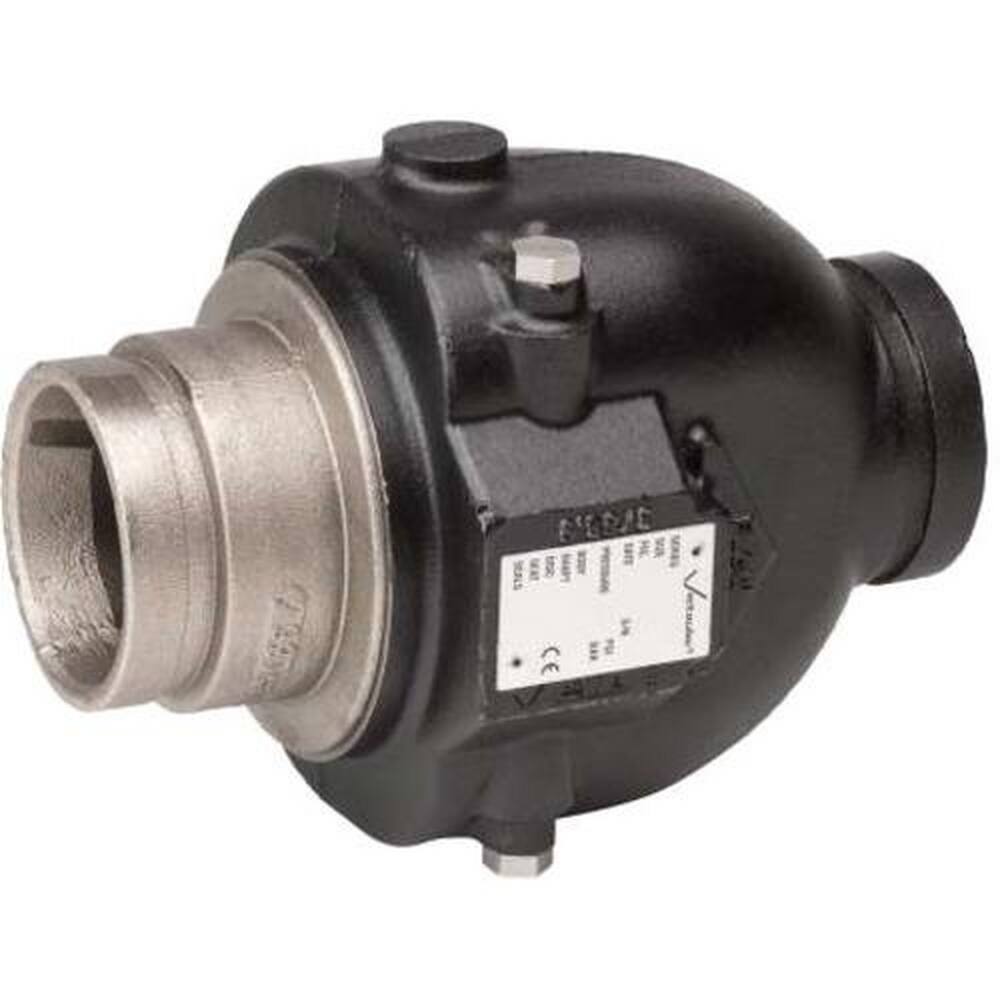

Victaulic . V020717PH0
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Victaulic |
|---|---|
| DimensionUnit | inch |
| Weight | 10.7 |
| Weight_Attrib | Weight |
| height | 3.571428571428571 |
| height_Attrib | Height |
| length | 8.66 |
| length_Attrib | Length |
| moq, multiple | 1 |
| MPN | V020717PH0 |
| qtyInStock | -2 |
| SKU | 3874734 |
| width | 6.46 |
| width_Attrib | Width |
| ASTM Specifications | ASTM A-536 Grade 65-45-12, ASTM B-733 |
| Application | Schedule 10 Pipe, Schedule 40 Pipe |
| Clean Bagged, IAPMO Listed, NSF Certified | No |
| Coating | Painted |
| Collection | FireLock® Series 717H |
| Color Finish | Black |
| Color Finish Category | Blacks |
| End Connection 1, End Connection 2, End Connections | Grooved |
| FM Approved, UL Listed | Yes |
| Height | 3-4/7 in |
| High Pressure | 365 |
| Installation Type | Horizontal, Vertical |
| Length | 8-33/50 in |
| Material, Valve Body Material | Ductile Iron |
| Outside Diameter | 2-3/8 in |
| Recommended Valve Application | Fire Protection |
| Valve Body Style | Spring |
| Valve Disc Material | Stainless Steel |
| Valve Seat Material | Electroless Nickel Plated |
| Valve Size | 2 in |
| Valve Type | Spring Check Valve |
| Width | 6-23/50 in |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 3874734 | 1 | -2 | 1 |
