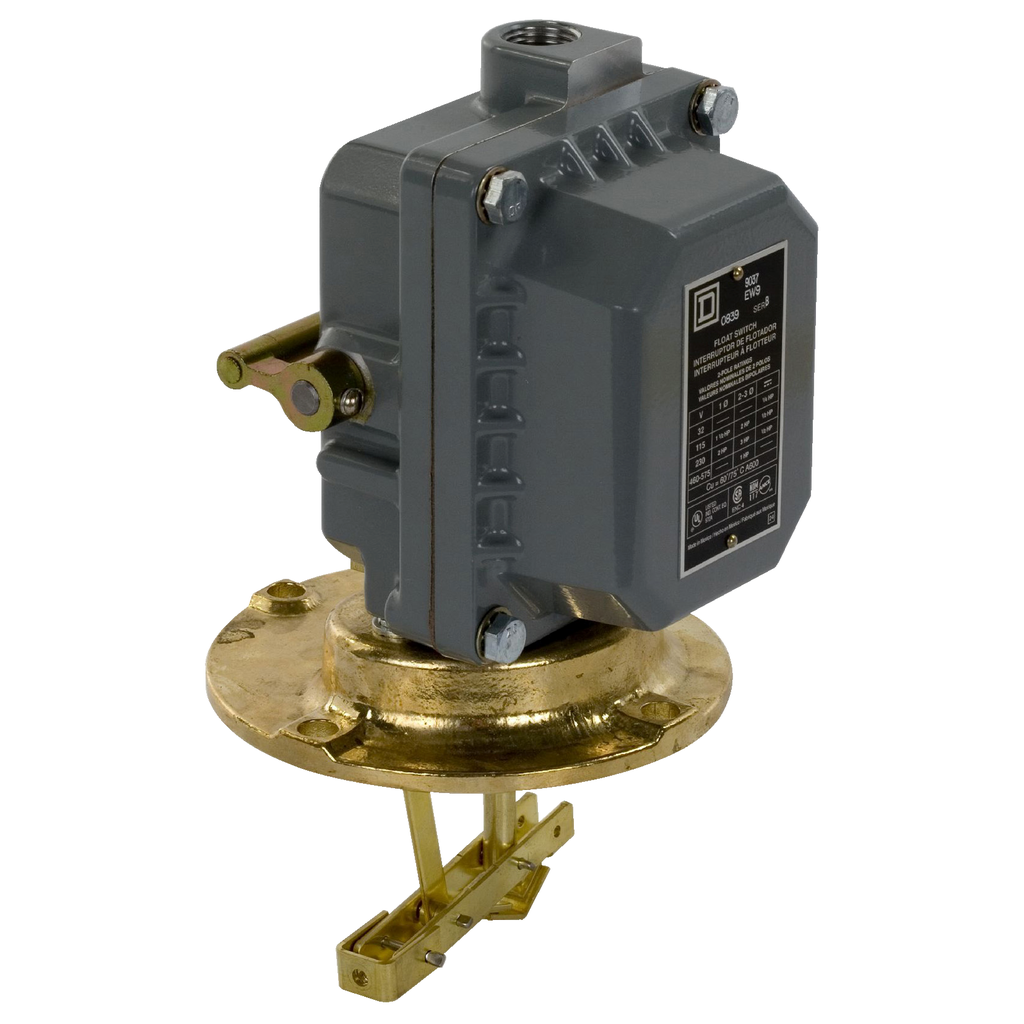

Float switch, Square D Pumptrol, closed tank, NEMA 7/9, flange mounted, 2 NC DPST DB contacts | Mayer Electric

Mayer Electric Supply . 9037ER9

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameFloat switch, Square D Pumptrol, closed tank, NEMA 7/9, flange mounted, 2 NC DPST DB contacts | Mayer Electric
UPC785901485490
Weight11.99
WeightUnitlbs
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-SQD-9037ER9-FLOAT-SWITCH-575VAC-1HP-785901485490
jsonUrlData28f2e3081-527a-45fb-a1e5-abd20061a31f
moq, multiple, tierMinQty11
MPN9037ER9
qtyInStock0
SKUSQD9037ER9
tierPrice1547.40
Range Of ProductSquare D Pumptrol
Product Specific Applicationliquid level control
Quantity Per Setset of 1
Electrical Circuit Typepower circuit
Product Or Component Typefloat switch
Type Of Packingindividual
Device Applicationclosed tank
Device Short Name9037E
Warranty18 months
Cable Entry Number2 conduit entries for 3/4"-14 NPT UL 508
Electrical Connectionscrew-clamp terminals 10 AWG
Contact Operationcontacts close on liquid rise
Product Destinationfor closed tank
Terminal Block Type4 terminals
Terminals Description Iso N?1line-load-load-line
Short-Circuit Protection20 A cartridge fuse gG
[Ui] Rated Insulation Voltage575 V UL 508
Device Mountingflange
Mechanical Durability300 cycles
Float Rod Anglehorizontal
Factory Modification, Local Signallingwithout
Float Movementvariable fixed
Operating Positionvertical or horizontal position
Maximum Operating Rate60 cyc/mn
Enclosure MaterialCast Aluminium
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Materials In Contact With Fluidstainlesss steel 304 || nitrile (Buna-N) or equivalent rubber || stainless steel 316 || yellow brass
Float Positionany
Net Weight11.99 lb(US)
Kit Compositionfloat switch || rod and float are to be choosen in accessories
Electrical Durability100 cycles 60 cyc/mn
Circularity ProfileENVEOLI111210EN
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product CertificationsUL listed file E12443 || CSA file LR26817
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-22-220 ?F
StandardsUL 508 || CE
Nema Degree Of ProtectionNEMA 7/9 UL 698

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9037ER9111 @ $547.40
