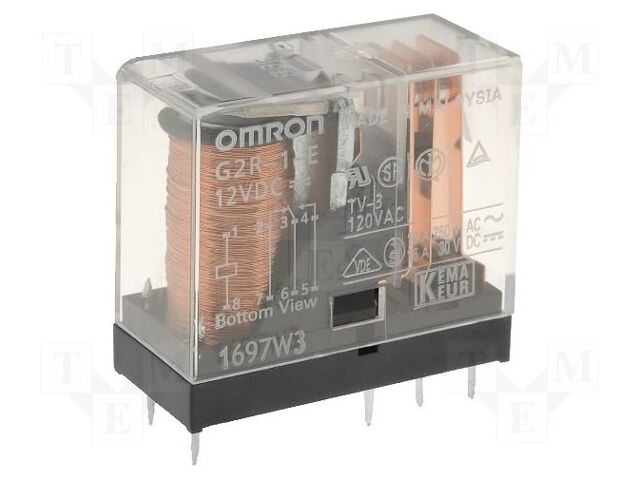

OMRON OCB G2R-1E 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 16A
OMRON OCB G2R-1E 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 16
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-1E 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 16A |
| atoms, moq, multiple | 1 |
| jsonUrlData | 69c6fb8a3d2696050d676b492aaa2019. |
| jsonUrlData2 | 3b49a06527da31801ad5 |
| keywords | OMRON OCB, G2R-1E 48VDC, G2R-1E-48DC |
| MPN | G2R-1E 48VDC |
| qtyInStock | 0 |
| SKU | G2R-1E-48DC |
| snippet | OMRON OCB G2R-1E 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 16 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 48V DC |
| Contact current max | 16A |
| AC contacts rating @R | 16A / 250V AC |
| DC contacts rating @R | 16A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil voltage min | 38.4V DC |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Mechanical durability | 20000000 cycles |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 30m? |
| Terminal pitch | 5mm |
| Coil current | 12mA |
| Enclosure description | standard seal |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1E-48DC | 1 | 1 |
