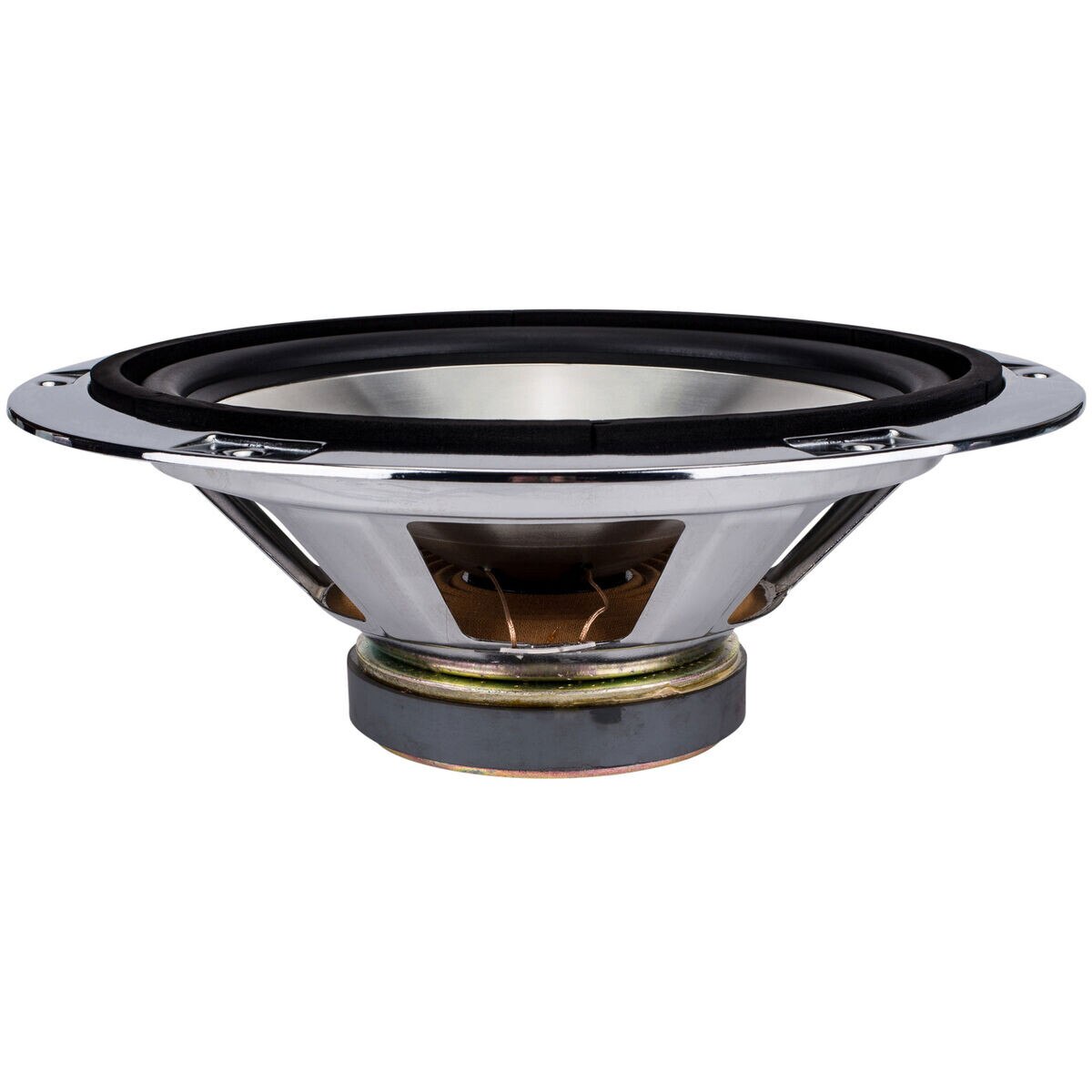

Digital Audio 12" Silver Poly Cone Rubber Surround Woofer 8 Ohm

Digital Audio 12" Silver Poly Cone Rubber Surround Woofer 8 Ohm. Part Number: 299-1034 by Factory Buyouts.

Factory Buyouts . 299-1034

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameDigital Audio 12" Silver Poly Cone Rubber Surround Woofer 8 Ohm
UPC848864027883
Weight9.2
WeightUnitlbs
depth, length5.375
diameter, height, width14.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, SKU, Part Number299-1034
qtyInStock0
snippetDigital Audio 12" Silver Poly Cone Rubber Surround Woofer 8 Ohm. Part Number: 299-1034 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter13.25
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8?
Frequency Response27 to 900Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)27.5Hz
DC Resistance (Re)6.79?
Voice Coil Inductance (Le)1.34mH
Mechanical Q (Qms)4.22
Electromagnetic Q (Qes)1.73
Total Q (Qts)1.23
Compliance Equivalent Volume (Vas)5.05ft?
Mechanical Compliance of Suspension (Cms)0.362mm/N
BL Product (BL)7.9T?m
Diaphragm Mass Inc Airload (Mms)92.06g
Maximum Linear Excursion (Xmax)4.25mm
Surface Area of Cone (Sd)527.6cm?
Cone MaterialPoly
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter14"
Baffle Cutout Diameter11.125"
Depth5.375"
# Mounting Holes6
Sealed Volume7.3ft?
Sealed F326Hz
