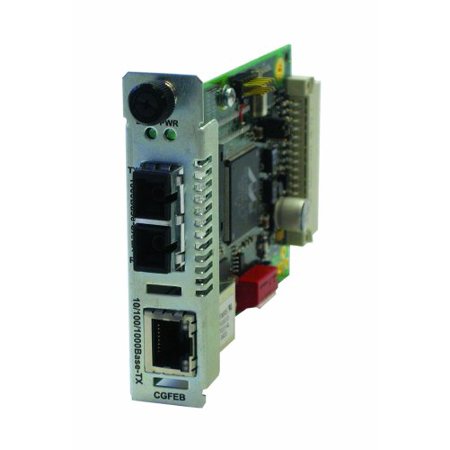

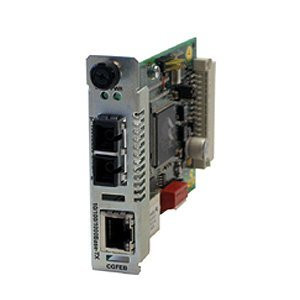

10/100/1000BT To 1000BX Sc Mm 850NM Module Converter

Model Brand: Transition Networks Model: CGFEB1013-120 Spec Specifications: Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.1P, IEEE 802.1q Data Rate Copper: 10/100/1000 Mbps Fiber: 1000 Mbps Filtering Addresses 8K MAC Addresses Max Frame Size 802.3ac tagged: 1628 bytes untagged: 1632 bytes Multimode Min TX PWR: -10.0 dBm Max TX PWR: -4.0 dBm RX Sensitivity: -17.0 dBm Max In PWR: 0.0 dBm Link Budget: 7.00 dB Features Features: Extend Network Distance Bridge legacy 10/100 devices to a Gigabit backbone Secure Uni-directional transmission Auto-Negotiation (copper and fiber ports) Switch Selectable Speeds (UTP) when Auto-Negotiation is off

Description: Port One: 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] Port Two: 1000BASE-SX 850nm multimode (SC) [62.5/125?m: 220 m/722 ft.; 50/125?m: 550 m/1804 ft.] Features: Extend Network Distance Bridge legacy 10/100 devices to a Gigabit backbone Secure Uni-directional transmission Auto-Negotiation (copper and fiber ports) Switch Selectable Speeds (UTP) when Auto-Negotiation is off AutoCross?: Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration. Link Pass Through: Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal. Remote Fault Detect Pause Automatic Link Restoration: Transition Networks's converters will automatically re-establish link in all network conditions. IEEE 802.1P QoS, IPv4 Tos/Diffserv, IPv6 traffic class IEEE 802.1q VLAN tagging and double tagging (Q in Q) Remote Firmware Upgrade Virtual Cable Test (VCT) on UTP port Unidirectional data transmission allows secure traffic forwarding in only one direction Bandwidth Allocation DMI, Digital diagnostics per SFF-8472 RMON Counters for each port
