OA172EC-11-1TBIP68A Orion Fans | Fans, Thermal Management | DigiKey

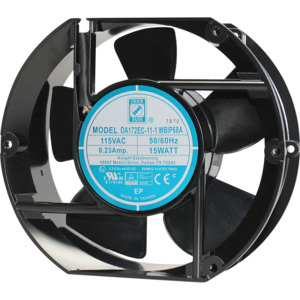

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 220.0 CFM (6.16m?/min) 2 Terminals
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| CategoryL1, Category | Fans, Thermal Management |
| CategoryL2 | Fans |
| CategoryL3 | AC Fans |
| DimensionUnit | mm |
| Extra Product Name | OA172EC-11-1TBIP68A Orion Fans | Fans, Thermal Management | DigiKey |
| Weight | 1.5 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN, Manufacturer Product Number | OA172EC-11-1TBIP68A |
| packaging, Package | Box |
| qtyInStock | 69 |
| SKU | 9380239 |
| snippet, Detailed Description | Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 220.0 CFM (6.16m?/min) 2 Terminals |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierPrice1 | 125.46000 |
| tierPrice2 | 112.75500 |
| tierPrice3 | 111.16640 |
| tierPrice4 | 104.02000 |
| width | 51.0 |
| width_Attrib | Width |
| Digi-Key Part Number | 1053-1820-ND |
| Description | FAN 172X150X51MM 115VAC IP68ATEX |
| Manufacturer Standard Lead Time | 19 Weeks |
| Series, Base Product Number | OA172EC |
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 51.00mm |
| Air Flow | 220.0 CFM (6.16m?/min) |
| Static Pressure | 0.620 in H2O (154.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Noise | 57.0dB |
| Power (Watts) | 15.00W |
| RPM | 3000 RPM |
| Termination | 2 Terminals |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158?F (-20 ~ 70?C) |
| Approval Agency | ATEX, CE, cURus, UR |
| Current Rating (Amps) | 0.230A |
| Voltage Range | 103 ~ 127VAC |
| Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 50000 Hrs @ 40?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 9380239 | 1 | 69 | 1 | 1 @ $125.46, 10 @ $112.75, 25 @ $111.17, 50 @ $104.02 |
| Future Electronics | 6107576 | 1 | 5 | 1 | 1 @ $88.39, 2 @ $80.07, 5 @ $70.26, 10 @ $63.64 |
 Newark | 91AH9588 | 1 | 5 | 1 | 1 @ $81.22, 5 @ $81.22, 10 @ $81.22, 25 @ $81.22, 50 @ $81.22, 100 @ $81.22 |
| 10142346 | 1 | 1 | 1 @ $127.10 | ||
| us.rs-online.com | 71443202 | 1 | 1 | 1 @ $92.93, 5 @ $90.29, 10 @ $85.54, 25 @ $79.73, 50 @ $75.51, 100 @ $70.23 |
