Cle-Line

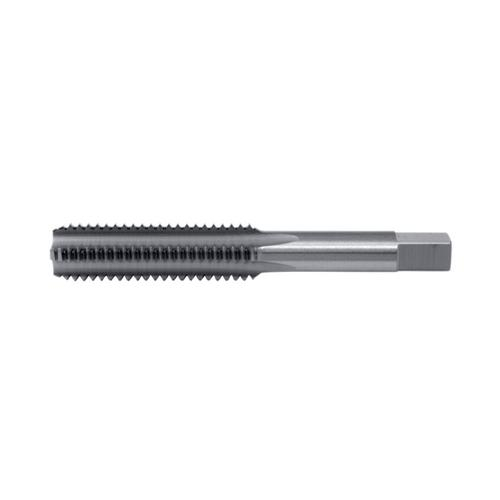

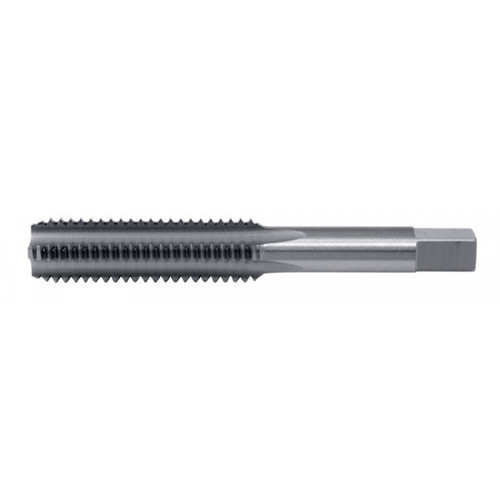

Bottoming chamfer hand tap. 1 - 2 incomplete threads before cutting. Used in all types of hand and machine tool operations for ferrous and non-ferrous materials. Ground thread for better surface finish and tighter tolerances. Best used for tapping a blind hole and when threading is need closer to the bottom of a blind hole. Manufactured from high-speed steel. Use for tapping in carbon steel, alloy steel, stainless steel, cast iron, aluminum and non-ferrous materials. Made in the USA.

Cle-Line . C63239

Gallery

Attributes

Brand name, Manufacturer name, Extra Product NameCle-Line
ManufacturerCle-Line Greenfield Inc.
DimensionUnitinch
GraingerSku50AN72
UPC697334632399
UnitOfMeasureEA
Weight0.1 0.1746
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height0.6
jsonUrlData924526ffbdad25e5923b
length4.1
moq, multiple, tierMinQty1, Number of Pieces, Item_package_quantity, PackageQuantity1
MPN, Keyword, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpnsC63239
qtyInStock2
qtyInStockOverride-2
SKUG4961516
tierPrice113.00
urlhttps://www.zoro.com/cle-line-straight-flute-hand-tap-m12-175-bottoming-4-flutes-c63239/i/G4961516/
width0.7
ItemStraight Flute Hand Tap
Tap Thread SizeM12-1.75
Shank Dia3.58mm
Tap Material, MaterialHigh Speed Steel
Tap ChamferBottoming
Number of Flutes4
Tap Thread Type, Thread StandardMetric Coarse
Tap StyleStraight Flute (Hand)
Tap Dimension Type, Measurement SystemMetric
Overall Length69.06mm
Tap FinishBright
List Number, Series0403M
Tap GroupingTap
StandardsUSCTI Table 302
Pitch Diameter LimitD7
Thread Length46.04mm
Thread Direction, Cutting Direction - MachiningRight Hand
55% Thread Drill Size27/64 in
Primary Material Application ISO CodeK, N, P
Tap Length Standard, Tap Shank StandardUSCTI
65% Thread Drill Size10.50 mm
Thread LimitD6
Spiral DirectionNeutral
Shank Length44.00 mm
Thread SizeM12x1.75
Square Size6.99 mm
Shank Type - MachiningStraight
75% Thread Drill Size10.30 mm
Primary Material ApplicationAluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Pitch1.75mm
Extended NeckYes
Class of Fit6H
Helix Angle0 Degrees
Thread Limit / Class of FitD6 / 6H
Country of Origin (subject to change)United States
AsinB00M44G8DI
BrandCle-line
Bullet_pointBottoming chamfer used to thread close to an obstruction or blind hole Ground thread for economical tapping HSS substrate, bright finish Made in the USA
ClassificationId256326011
DisplayNameHand Threading Taps
Hand_orientationRight
Height0.9448 13 178 89
Identifier00697334632399 0697334632399 697334632399
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameCle-Line C63239 Bottoming Chamfer Hand Tap, M12-1.75 Metric
Item_package_weight0.1746
Item_type_keywordhand-threading-taps
Length, String_value3.375
Linkhttps://m.media-amazon.com/images/I/319hKPksrmL._SL75_.jpg https://m.media-amazon.com/images/I/319hKPksrmL.jpg https://m.media-amazon.com/images/I/41JCzpLPawL.jpg
Model_name, Style0403
Number_of_items6
ProductTypeCUTTING_TOOLS
Product_site_launch_date2014-07-24T00:00:01-07:00
SizeM12-1.75 Metric
TypeTap ean gtin upc
Unitinches millimeters pounds
Unit_count1.0
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.9448 1000 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG49615161211 @ $13.00
MegadepotC63239111 @ $11.46
Global IndustrialWBB26829623-231 @ $15.00
heavydutydepot.comC632399-261 @ $11.46
usmegastore.comC632391-211 @ $12.68
Grainger50AN7211
imsbolt.comC632391-211 @ $22.77
MRO Supply6126900111 @ $13.82

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Cle-Line C63239 Bottoming Chamfer Hand Tap, M12-1.75 Metric
Brand: Cle-line
Details
  • Ground thread for economical tapping
  • HSS substrate, bright finish
  • Bottoming chamfer used to thread close to an obstruction or blind hole
  • Made in the USA
