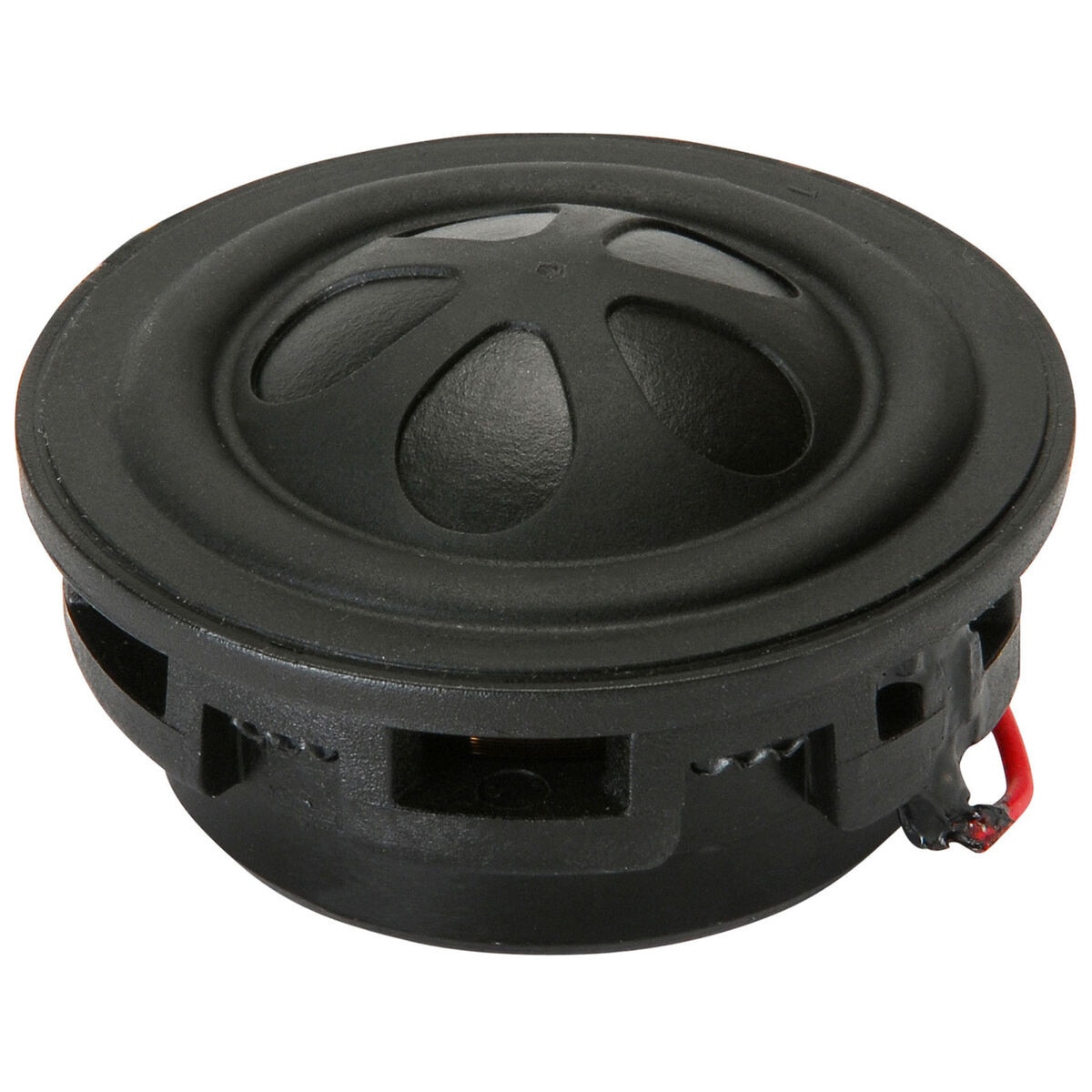

Tang Band W1-1942S 1" Full-Range Neodymium Driver

Tang Band W1-1942S 1" Full-Range Neodymium Driver. Part Number: 264-924 by Tang Band.

Tang Band . W1-1942S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-1942S 1" Full-Range Neodymium Driver
UPC844632099427
Weight0.2
WeightUnitlbs
depth, length0.61
diameter, height, width1.81
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW1-1942S
qtyInStockBack-Ordered
SKU, Part Number264-924
snippetTang Band W1-1942S 1" Full-Range Neodymium Driver. Part Number: 264-924 by Tang Band.
Unit of MeasureEach
Nominal Diameter, Voice Coil Diameter1"
Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance4?
Frequency Response120 to 20,000Hz
Sensitivity82dB 2.83V/1m
Resonant Frequency (Fs)120Hz
DC Resistance (Re)3.5?
Voice Coil Inductance (Le)0.046mH
Mechanical Q (Qms)1.79
Electromagnetic Q (Qes)0.27
Total Q (Qts)0.24
Compliance Equivalent Volume (Vas)0.005ft?
Mechanical Compliance of Suspension (Cms)1.37mm/N
BL Product (BL)3.49T?m
Maximum Linear Excursion (Xmax)1.3mm
Surface Area of Cone (Sd)9cm?
Cone MaterialPoly Composite
Surround MaterialSantoprene?
Magnet MaterialNeodymium
Overall Outside Diameter1.81"
Baffle Cutout Diameter1.67"
Depth0.61"
Vented Volume0.01ft?
Vented F3112.4Hz
