Where can I buy ODE-3-420460-3F4B?

ODE-3-420460-3F4B is available from MRO Supply, driveswarehouse.com, vfds.com. See pricing comparison above.

What is the price of ODE-3-420460-3F4B?

Pricing ranges from $2131.20 to $2378.57 depending on quantity and distributor.

Is ODE-3-420460-3F4B in stock?

Yes, ODE-3-420460-3F4B is currently in stock at multiple distributors with immediate availability.

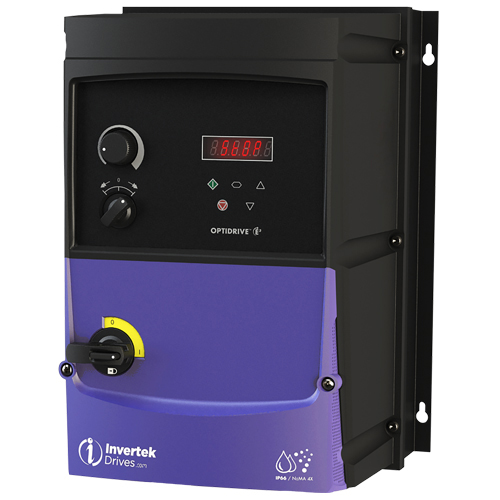

Invertek ODE-3-420460-3F4B 11kW 15Hp 46A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

Name: Invertek ODE-3-420460-3F4B 11kW 15Hp 46A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD
Brand: Invertek
Price: 2131.20 USD
Availability: OutOfStock

The ODE-3-420460-3F4B is produced by Invertek and is described as a Invertek ODE-3-420460-3F4B 11kW 15Hp 46A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

Invertek . ODE-3-420460-3F4B

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Invertek
CategoryL1	Automation
CategoryL2	Speed Controllers & VFDs
CategoryL3	AC Vector Drives
CategoryL4	Three Phase
DimensionUnit	inch
Extra Product Name	Invertek ODE-3-420460-3F4B 11kW 15Hp 46A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD
Voltage, Input voltage	200 / 240V
Weight	11.5
WeightUnit	lbs
Weight_Attrib	Packaged dimensions weight
depth, length	8.3
height	16.5
height_Attrib	Height
length_Attrib	Depth
moq, multiple, tierMinQty1	1
MPN	ODE-3-420460-3F4B
qtyInStock	0
SKU	6092735
tierPrice1	2131.20
width	11.614173228346457
width_Attrib	Packaged dimensions width
Frame, Drive dimensions size	4
Height	16.5 in
Depth	8.3 in
Rated power	11 kW/15 HP
Phase, Input phases	3
Width (in)	6.7
Supply fuse or MCB (type B)	63 A
Packaged dimensions depth	425 mm (16.73 in)
Supply current continuous	50.1 A
Drive dimensions weight	9.5 kg (20.94 lbs)
Max motor cable size, Max supply cable size	16 mm? (0.02 in?)
Brake transistor	Internal brake transistor
Supply voltage	200-240 V
Output current	46 A
Drive dimensions fixings	4 x M4
Drive dimensions depth	271 mm (10.67 in)
Packaged dimensions weight	11.5 kg (25.35 lbs)
Max motor cable length	100 m (328 ft)
Output voltage	0 - supply voltage
Drive dimensions height	360 mm (14.17 in)
EMC filter	Internal EMC filter
Display	LED
Packaged dimensions height	325 mm (12.8 in)
Motor output rating	11 kW (15 HP)
Drive dimensions width	240 mm (9.45 in)
Enclosure	IP66 outdoor switched
Packaged dimensions width	295 mm (11.61 in)

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
MRO Supply	6092735	1		1	1 @ $2131.20
driveswarehouse.com	ODE-3-420460-3F4B	1	-2	1	1 @ $2131.20
vfds.com	ODE-3-420460-3F4B	1		1	1 @ $2378.57
