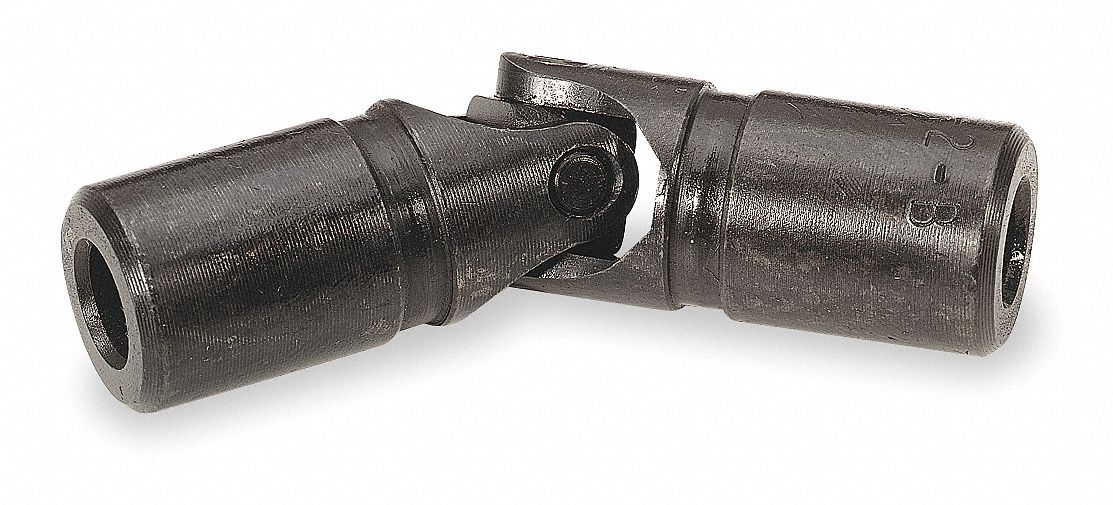

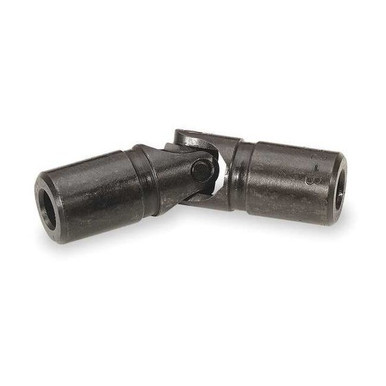

Universal Joint, Coupling Size D-2B, Overall Length 2 in, Maximum Bore Diameter 3/8 in, Maximum Operating Angle 25 Degrees , Yoke Length 1 in, Boot Material Not Applicable, Bore Diameter 1/4 in, Number of Joints Single, Joint Diameter 1/2 in, Maximum Speed 1,750 RPM, U-Joint Material Carbon Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1/2 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 5/8 in, Break Torque 378 in-lb, System of Measurement Inch

Universal Joint, Coupling Size D-2B, Overall Length 2 in, Maximum Bore Diameter 3/8 in, Maximum Operating Angle 25 Degrees , Yoke Length 1 in, Boot Material Not Applicable, Bore Diameter 1/4 in, Number of Joints Single, Joint Diameter 1/2 in, Maximum Speed 1,750 RPM, U-Joint Material Carbon Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1/2 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 5/8 in, Break Torque 378 in-lb, System of Measurement Inch

Lovejoy . D-2B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLovejoy
CategoryId, CategoryIdL36026
CategoryIdL131
CategoryIdL24596
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Couplings, Collars, & Adapters
CategoryL4Universal Joints
DimensionUnitinch
GTIN, UPC685144162359
GraingerSku1L742
UnitOfMeasureEA
Weight0.08
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height0.6
jsonUrlData924526ffbdad25e5923b
length6.5
moq, multiple, tierMinQty1, width1
MPN, Coupling SizeD-2B
qtyInStock291
qtyInStockOverride-2
SKUG1206606
tierPrice150.15
urlhttps://www.zoro.com/lovejoy-u-joint-14-in-d-2b/i/G1206606/
Outside Dia, Outside Diameter, Joint Diameter1/2 in
Overall Length2 in
Bore Diameter, Standard Bore1/4 in
Keyway Width, Minimum Bore Diameter, Keyway DepthNot Applicable
Maximum Bore Diameter, Max Bore3/8 in
Yoke Length1 in
Length through Bore5/8 in
ItemUniversal Joint
TypeBored D
BoreBored Units Must Be Rebored To Maximum Diameter Shown
Static Breaking Torque (In -Lb )378
ConstructionSteel
DesignPin and Block
Used ForApplications with Angles up to 25 Degrees and Speeds up to 1750 RPM
GrooveStandard Boot Retaining
Keyway, SetscrewNot Provided

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1206606129111 @ $50.15
Grainger1L74218511 @ $68.00
RadwellD-2B11
AmazonTPB000CFVUES111 @ $62.10
Raptor SuppliesAB2CHA11
AmazonUNKB000CFVUES1-211 @ $62.10
AmazonSCB000CFVUES111 @ $62.10
sustainablesupply.comC16614321-211 @ $53.16
grainger.caWWG1L7421-211 @ $108.25
simsupply.comZO-G1206606119711 @ $118.21
