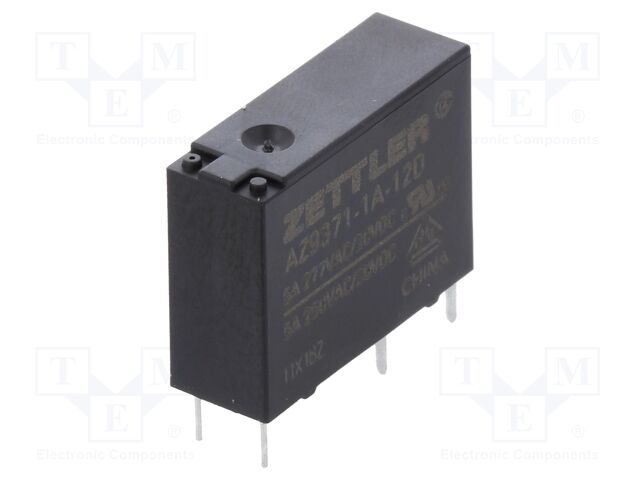

ZETTLER AZ9371-1A-12D | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB
ZETTLER AZ9371-1A-12D | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ9371-1A-12D | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 935562ecd50b77fbc96dce25d1a9221b. |
| jsonUrlData2 | 5088b72674287d4d39ec |
| keywords | ZETTLER, AZ9371-1A-12D, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ9371-1A-12D |
| qtyInStock | 1108 |
| snippet | ZETTLER AZ9371-1A-12D | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 0.91 |
| tierPrice2 | 0.792 |
| tierPrice3 | 0.726 |
| tierPrice4 | 0.659 |
| tierPrice5 | 0.603 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 12V DC |
| Contact current max | 5A |
| AC contacts rating @R | 5A / 250V AC |
| DC contacts rating @R | 5A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 720? |
| Operate time | 6ms |
| Body dimensions | 20.5x7.2x15.3mm |
| Release time | 3ms |
| Coil power consumption | 113mW |
| Operating temperature | -40...105?C |
| Relay series | AZ9371 |
| Contact resistance | 100m? |
| Contact material | AgNi |
| Terminal pitch | 7mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ9371-1A-12D | 1 | 1108 | 1 | 1 @ $0.91, 5 @ $0.79, 25 @ $0.73, 100 @ $0.66, 500 @ $0.60 |
