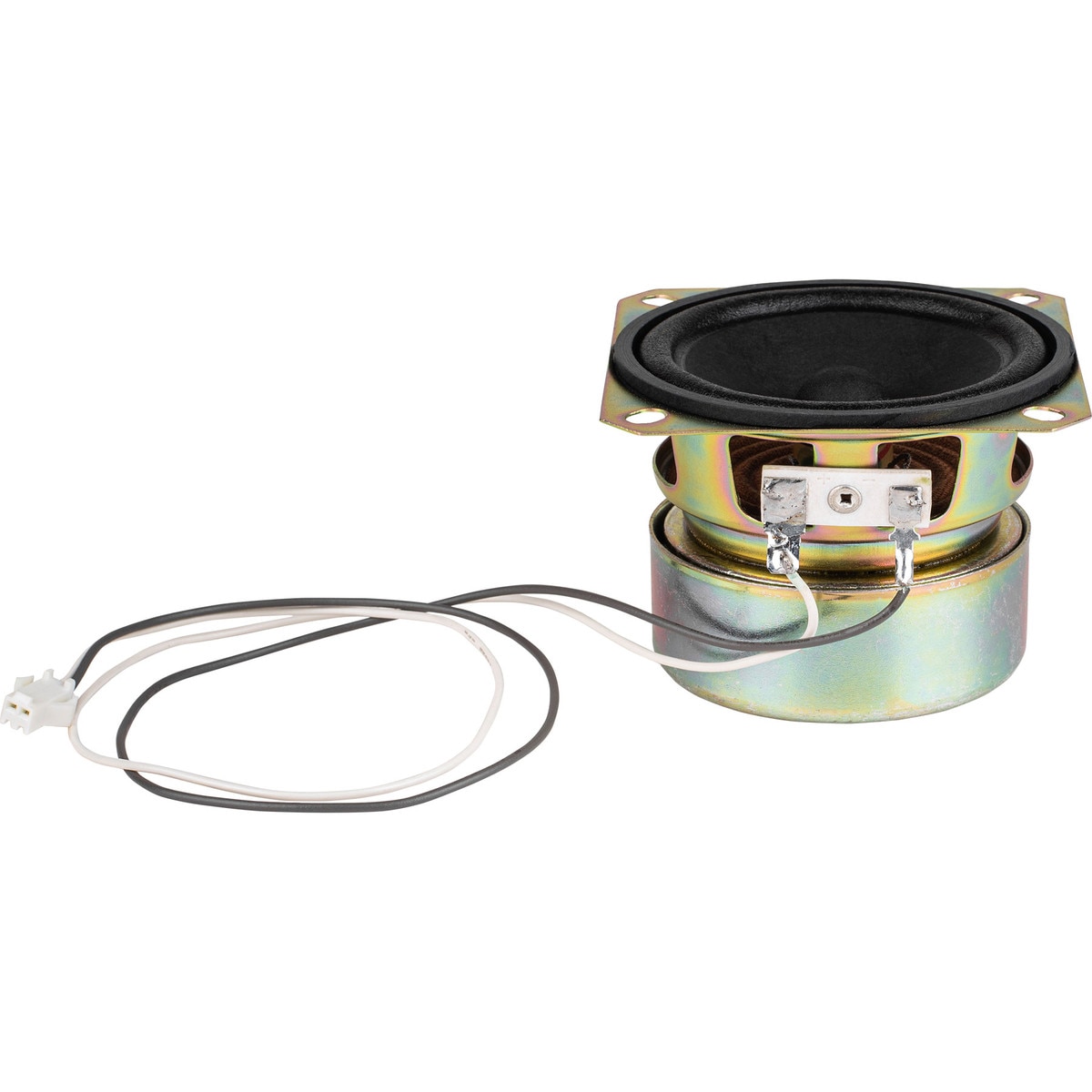

Sony 1-529-483-11 3" Shielded Full-Range Speaker 8 Ohm

Sony 1-529-483-11 3" Shielded Full-Range Speaker 8 Ohm. Part Number: 299-548 by Factory Buyouts.

Factory Buyouts . Z152948311

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameSony 1-529-483-11 3" Shielded Full-Range Speaker 8 Ohm
UPC848864062037
Weight0.7
WeightUnitlbs
depth, length2.25
diameter, height, width3.0625
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelZ152948311
qtyInStock-2
qtySourceFieldMap
SKU, Part Number299-548
snippetSony 1-529-483-11 3" Shielded Full-Range Speaker 8 Ohm. Part Number: 299-548 by Factory Buyouts.
tierMinQty210
tierMinQty350
tierPrice13.88
tierPrice23.55
tierPrice33.15
Unit of MeasureEach
Nominal Diameter3"
Bolt Circle Diameter3.5
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8?
Frequency Response180 to 10,000Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter0.688"
Resonant Frequency (Fs)163Hz
DC Resistance (Re)6.6?
Voice Coil Inductance (Le)0.27mH
Mechanical Q (Qms)4.2
Electromagnetic Q (Qes)1.4
Total Q (Qts)1.1
Compliance Equivalent Volume (Vas)0.027ft?
Mechanical Compliance of Suspension (Cms)0.69mm/N
BL Product (BL)2.56T?m
Diaphragm Mass Inc Airload (Mms)1.38g
Maximum Linear Excursion (Xmax)0.5mm
Surface Area of Cone (Sd)28.3cm?
Cone Material, Voice Coil FormerPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter3.0625"
Baffle Cutout Diameter2.875"
Depth2.25"
# Mounting Holes4
Sealed Volume0.03ft?
Sealed F3166Hz
Vented Volume0.18ft?
Vented F3104Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com299-5481-211 @ $3.88, 10 @ $3.55, 50 @ $3.15
