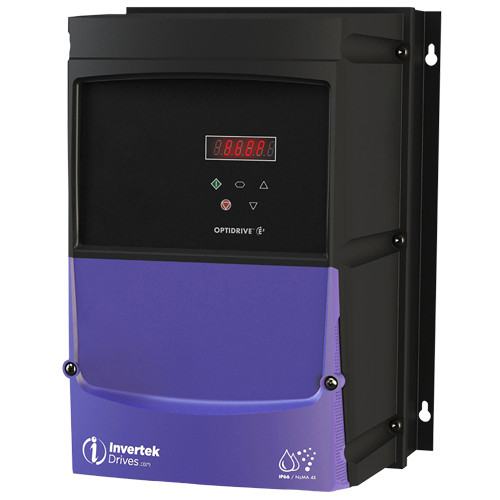

Invertek ODE-3-240058-3F4A 2.2kW 3Hp 5.8A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

The ODE-3-240058-3F4A is produced by Invertek and is described as a Invertek ODE-3-240058-3F4A 2.2kW 3Hp 5.8A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

Invertek . ODE-3-240058-3F4A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODE-3-240058-3F4A 2.2kW 3Hp 5.8A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD
Voltage, Input voltage380/480V
Weight4.2
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length, Width (in)7.4
height10.1
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODE-3-240058-3F4A
qtyInStock0
SKU6092716
tierPrice1600.00
width9.251968503937007
width_AttribPackaged dimensions width
Frame, Drive dimensions size2
Height10.1 in
Depth7.4 in
Rated power2.2 kW/3 HP
Phase, Input phases3
Supply fuse or MCB (type B)16 A
Packaged dimensions depth375 mm (14.76 in)
Supply current continuous7.5 A
Drive dimensions weight3.5 kg (7.72 lbs)
Max motor cable size, Max supply cable size8 mm? (0.01 in?)
Brake transistorInternal brake transistor
Supply voltage380-480 V
Output current5.8 A
Drive dimensions fixings4 x M4
Drive dimensions depth172 mm (6.77 in)
Packaged dimensions weight4.2 kg (9.26 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height257 mm (10.12 in)
EMC filterInternal EMC filter
DisplayLED
Packaged dimensions height215 mm (8.46 in)
Motor output rating2.2 kW (3 HP)
Drive dimensions width188 mm (7.4 in)
EnclosureIP66 outdoor non-switched
Packaged dimensions width235 mm (9.25 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092716111 @ $600.00
driveswarehouse.comODE-3-240058-3F4A1-211 @ $600.00
vfds.comODE-3-240058-3F4A111 @ $669.64
