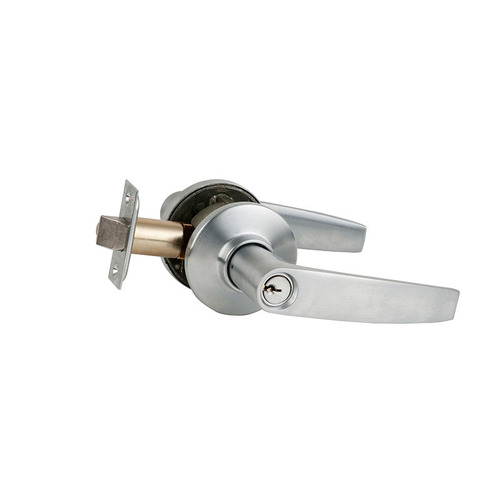

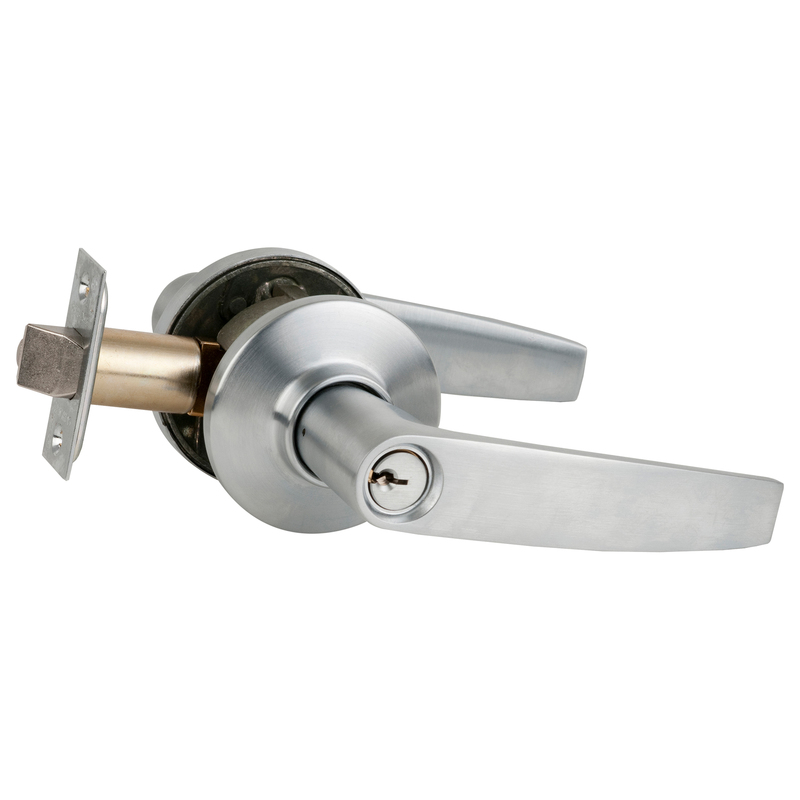

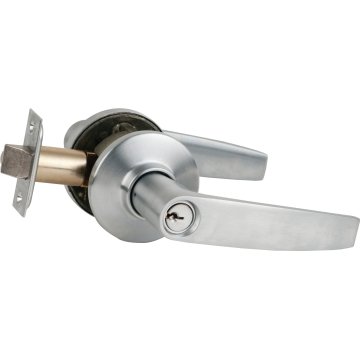

Schlage Commercial S51PD JUP 626 S Series Entry C Keyway Jupiter with 16-203 Latch 10-001 Strike Satin Chrome Finish

S SeriesTubular Lock Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure. Specifications: Handing: Not handed, except Flair design Door thickness: 1 3/8" to 2" (35 mm-51 mm) except S40D: 1 3/8" to 1 7/8? (35 mm-48 mm) Backset: Universal backset latches standard, fit either 2 3/8" (60 mm) or 2 3/4" (70 mm) Fronts: Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3/4" backset standard </ul

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSchlage Commercial
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial S51PD JUP 626 S Series Entry C Keyway Jupiter with 16-203 Latch 10-001 Strike Satin Chrome Finish
atoms, moq, multiple, tierMinQty1, Package Qty1
height2.75
height_AttribStrike Height
length4.25
length_AttribLever Length-Inches
MPN, SKUS51PD JUP 626
qtyInStock-2
qtySourceFieldMap
tierPrice1349.6
width1.125
width_AttribStrike Width
Lock Face Size2-1/4 In. x 1 In.
Lever/Knob DesignJUP - Jupiter
Latch TypeDead Latch
Latch Number16-203
Latch Backset DimAdjustable 2-3/8 In. and 2-3/4 In.
Dust BoxPlastic
Bolt Protection1/2 In.
ANSI FunctionF81 - Office
Cylinder TypeConventional
Function51-Entrance
KeywaySchlage C
Color Code626/US26D
Thickness1-3/4 In.
Strike Width1-1/8 In.
Strike TypeT-Strike
Strike Number10-001
Strike Height2-3/4 In.
Special MarksConventional cylinder
Finish, Finish Description, Finish FamilySatin Chrome
Backset2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
StrikeT-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
DesignJupiter
GradeANSI/BHMA Grade 2
Lever StyleJUP-Jupiter
Keyblank GroupingSCHL-C-6-1
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
ADA ApprovedFalse
Keying ChargesCCAM
HandingReversible
Sub-SeriesCL_Tubular_Locks_schlage_commercial_57
Lever MaterialPressure Cast Zinc
Lever Style FamilyStraight Lever
Latch CornerSquare
Lever Length-Inches4-1/4 Inch
Manufacturer ParentAllegion
ADA CompliantNo
FeaturesKey Removable Lever for Quick Rekeying or Cylinder Replacement; Large Turn-Button for Ease of Operation; Interlocking Chassis and Latchbolt Restricts Chassis from Rotating in Door
Latch Housing Diameter7/8 Inch
Function FamilyEntry/Entrance/Office
Chassis MaterialZinc
Front Size1" x 2-1/4"
StandardsANSI A156.2 Series 4000 Grade 2; UL/cUL Listed; FF-H-106C
Lever Projection2-1/2 Inch
Strike Size1-1/8" x 2-3/4" x 3/32"
Latch Throw1/2 Inch
Rose Diameter2-9/16 Inch
Door Thickness1-3/8" to 2"
Warranty3 Year Limited

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareS51PD JUP 6261-211 @ $349.60
HD Supply772673111 @ $523.76
thebuilderssupply.comSCH_S51PDJUP626118511 @ $246.78
