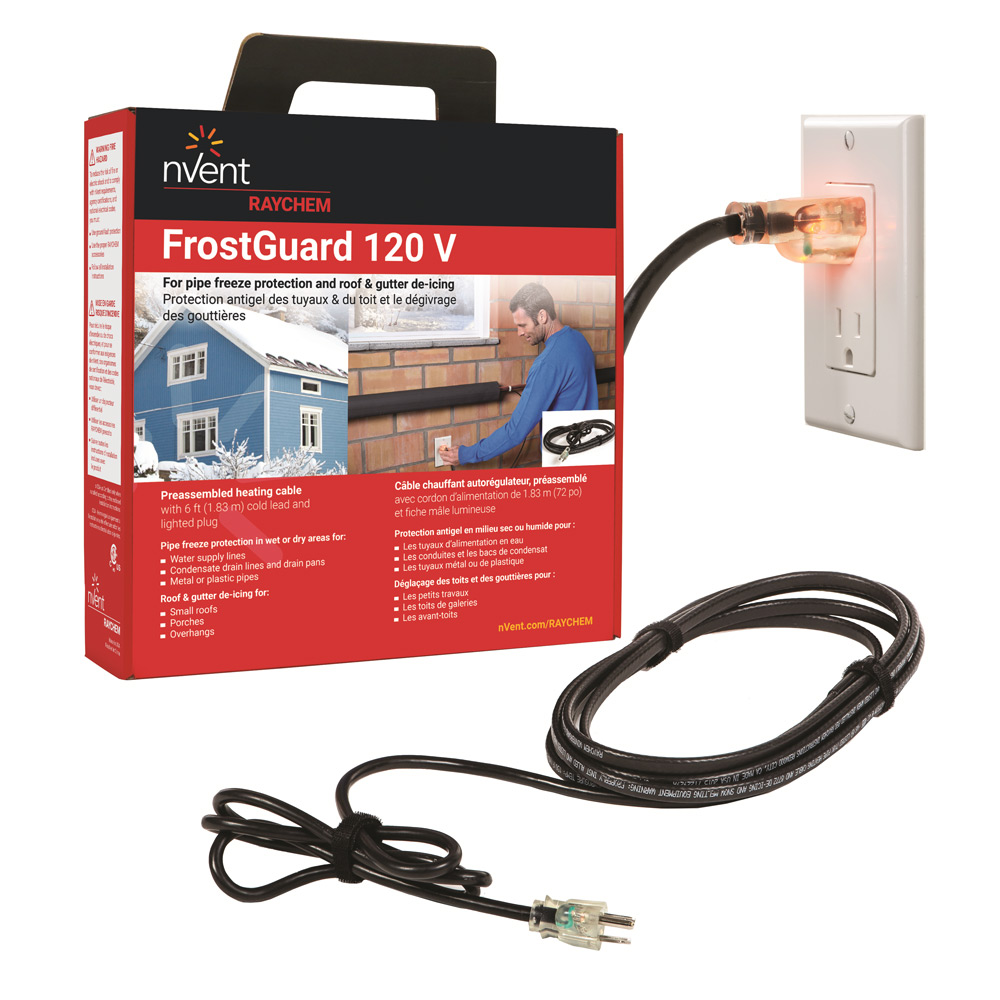

FrostGuard preassembled Self-Regulating Heating Cable, 120 V, 75 ft | Mayer Electric

NVENT RAYCHEM . P000002027

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerNVENT RAYCHEM
DimensionUnitmm
Extra Product NameFrostGuard preassembled Self-Regulating Heating Cable, 120 V, 75 ft | Mayer Electric
UPC, SKURCHFG175P
Weight2.86
WeightUnitkg
Weight_AttribWeight
height84.0
height_AttribHeight
jsonUrlData/Product/NVENT-RAYCHEM-FrostGuard-preassembled-self-regulating-heating-cable-120-V-6-W-ft-at-40F-75-ft-with-6-ft-cold-lead-and-lighted-3-prong-plug-715629008152
jsonUrlData273f435c5-a04f-420e-9514-abb200c7f079
length318.0
length_AttribLength
moq, multiple, tierMinQty11
MPNP000002027
qtyInStock0
tierPrice1392.14
width302.0
width_AttribWidth
Simple to design120 V version in 6, 12, 18, 24, 36, 50, 75 and 100 ft lengths each with a 6 ft power cord and 3-prong, grounded, lighted plug to show the system is on
Easy to installpre-assembled with a plug and cold lead to avoid the need for connection by an electrician
Energy efficient and safeself-regulating cable, no overheating possible even when overlapped or closely spaced
Reliable during long life2 year product warranty available, maintenance free
Length318.00 millimetre
Width302.00 millimetre
Height84.00 millimetre
Heating Cable TechnologySelf-Regulating
Nominal Voltage (volt), Voltage Rating120
Nominal Power Output @ 40?F, 120V (watt per foot), Nominal Power Output @ 40?F, 240V (watt per foot), Cold Lead Length (foot)6
Nominal Power Output, In Ice or Snow @ 32?F, 120V (watt per foot)8
Color, NEMA ColorBlack
Ground Path TypeBraid
Area ClassificationNon-Hazardous
Min Installation Temperature (degree Celsius)-15
Min Installation Temperature (degree Fahrenheit)5
Conductor Quantity, Number of Conductors2
Nominal Width (millimetre)11.4
Nominal Width (inch)0.45
Nominal Height (millimetre)6.1
Nominal Height (inch)0.24
Max Continuous Exposure Temperature, Power On (degree Celsius)65
Max Continuous Exposure Temperature, Power On (degree Fahrenheit), Temperature Rating150
Length (L) (metre)22.8
Length (L) (foot)75
Cold Lead Length (metre)1.83
Min Bending Radius (millimetre)16
Min Bending Radius (inch)0.625
Sub BrandRAYCHEM
CoreSelf-regulating conductive core
Conductor MaterialNickel Plated Copper
Wattage450
ResistanceVariable (Self-Regulating)
Insulation Material, Jacket MaterialModified Polyolefin

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comRCHFG175P111 @ $392.14
Crescent Electric Supply Co235627111
crescentelectric.com625478111 @ $452.19
