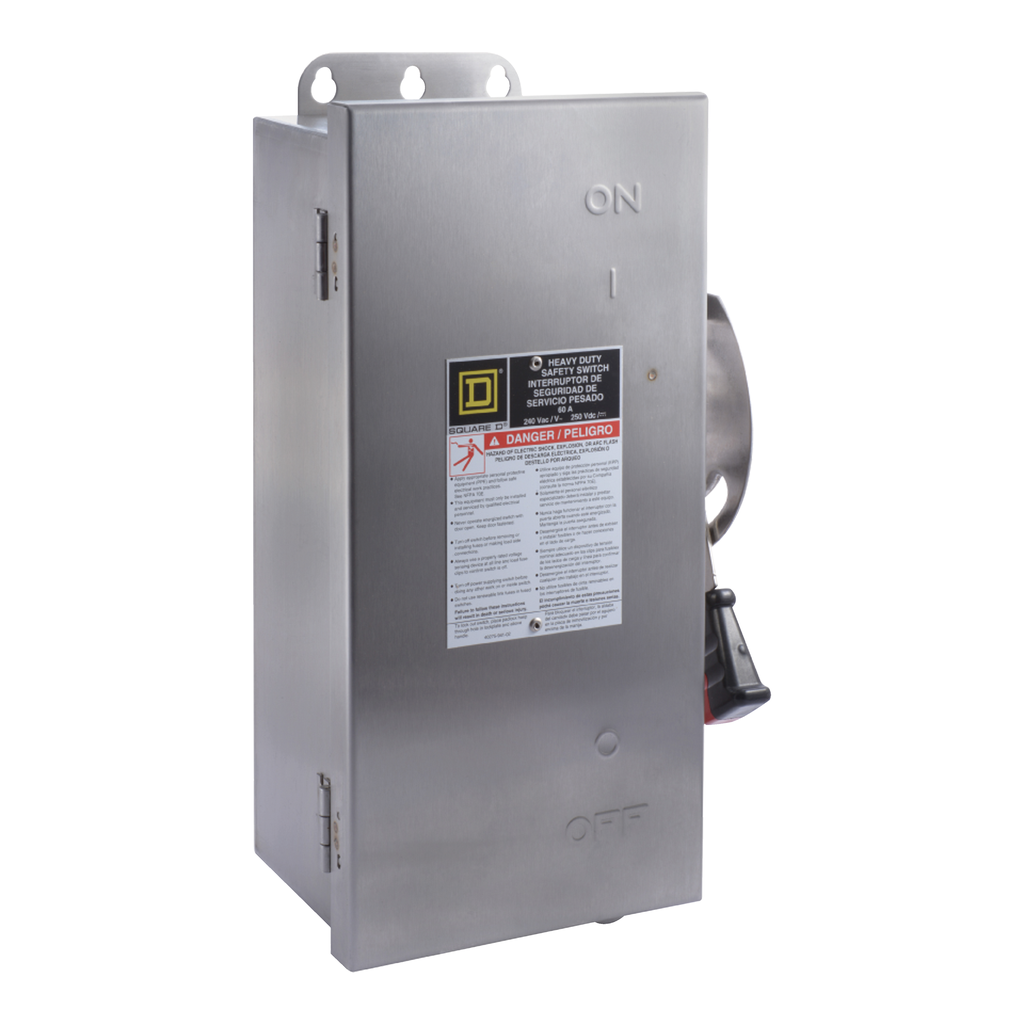

Safety switch, heavy duty, fusible, 60A, 3 wire, 3 poles, 15hp, 240VAC/250VDC, Type 4, 4X, 5, 304 SS | Mayer Electric

Mayer Electric Supply . H322DS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameSafety switch, heavy duty, fusible, 60A, 3 wire, 3 poles, 15hp, 240VAC/250VDC, Type 4, 4X, 5, 304 SS | Mayer Electric
UPC785901023654
Weight6
WeightUnitkg
Weight_AttribNet Weight
depth, length5.11
height14.93
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Safety-switch-heavy-duty-fusible-60A-3-poles-15-hp-240-VAC-250-VDC-NEMA-4-4X-5-304-steel-785901023654
jsonUrlData2edd2b8b0-7b12-4554-9014-abd200621aef
length_AttribDepth
moq, multiple, tierMinQty11
MPNH322DS
qtyInStock0
SKUSQDH322DS
tierPrice11580.35
width7.22
width_AttribWidth
Series Nameheavy duty
Disconnector Device Typefusible disconnect
Nema Degree Of ProtectionNEMA 4/4X/5 stainless steel 304
Line Rated Current60 A
Product Or Component TypeSingle Throw Safety Switch
Device Compositionnone
Phase3 phase
Device Applicationheavy application
Number Of Poles3
[Ue] Rated Operational Voltage250 V DC || 240 V AC
Warranty18 months
Height14.93 in
Device Mountingsurface
Tightening Torque50-50 lbf.in (AWG 3) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm? (AWG 8) || 50-50 lbf.in 2.06-5.261 mm? (AWG 14...AWG 10)
Fuse TypeH or K || R or J
Electrical Connectionlugs
Awg GaugeAWG 14...AWG 3 copper || AWG 12...AWG 3 aluminium
Width7.22 in
Wiring Configuration3-wire (3P)
Depth5.11 in
Short-Circuit Current10 kA H or K || 200 kA R or J
Net Weight6 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Pvc Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1304031
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product CertificationsUL listed file E2875

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDH322DS111 @ $1580.35
