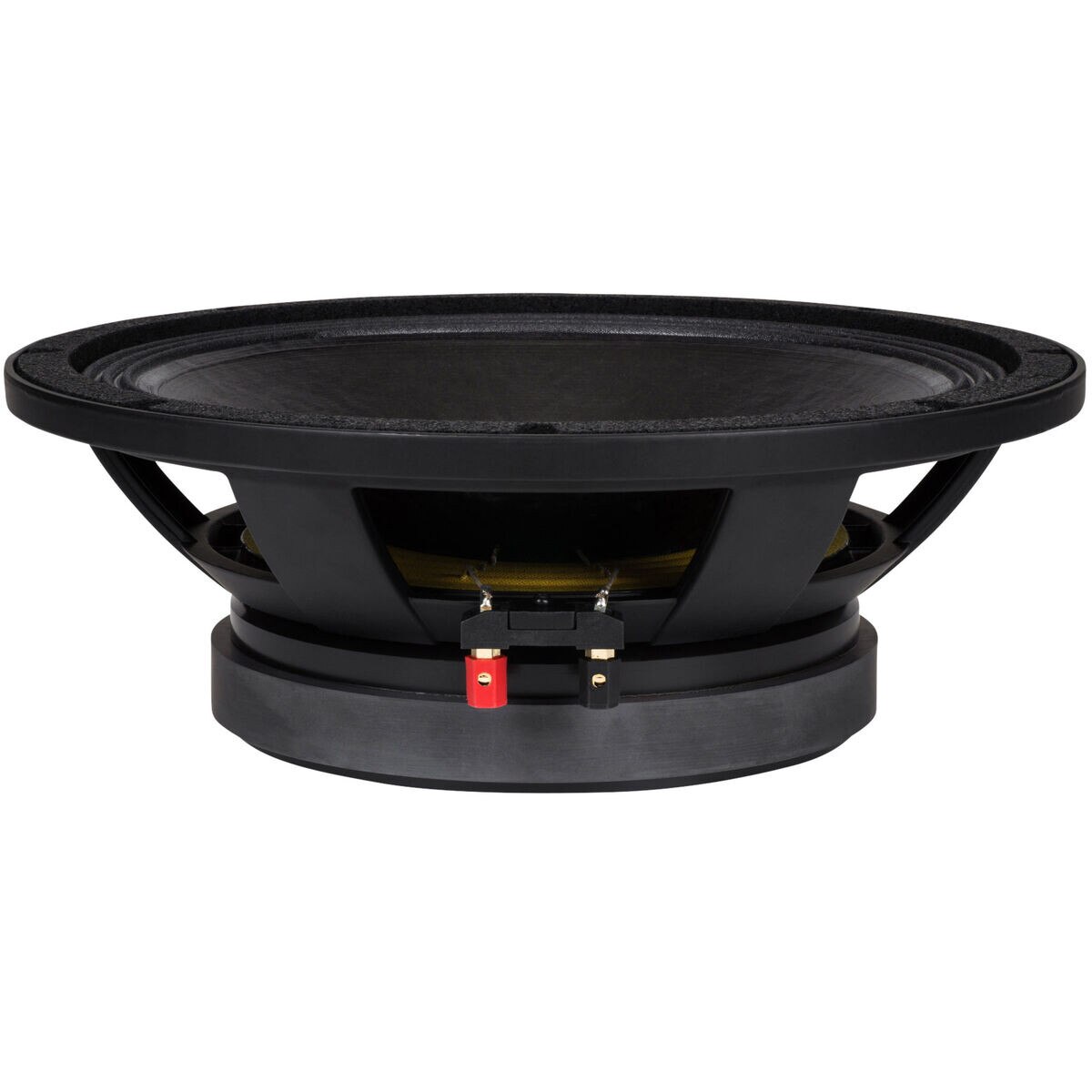

B&C 12PLB100 12" Professional Low Profile Woofer 8 Ohm

B&C 12PLB100 12" Professional Low Profile Woofer 8 Ohm. Part Number: 294-5958 by B&C Speakers.

B&C Speakers . 12PLB100

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12PLB100 12" Professional Low Profile Woofer 8 Ohm
UPC848864009599
Weight20.75
WeightUnitlbs
depth, length4.8
diameter, height, width12.5
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12PLB100
qtyInStockOnly 1 In Stock
SKU, Part Number294-5958
snippetB&C 12PLB100 12" Professional Low Profile Woofer 8 Ohm. Part Number: 294-5958 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.8
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance8?
Frequency Response50 to 2,500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)50Hz
DC Resistance (Re)5.1?
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)9.2
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)1.66ft?
Mechanical Compliance of Suspension (Cms)0.132mm/N
BL Product (BL)18.02T?m
Diaphragm Mass Inc Airload (Mms)77g
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)501.5cm?
Cone MaterialCoated Paper
Surround MaterialFoam
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth4.8"
# Mounting Holes8
Sealed Volume0.76ft?
Sealed F3108.1Hz
Vented Volume1.75ft?
Vented F349Hz
