Albion

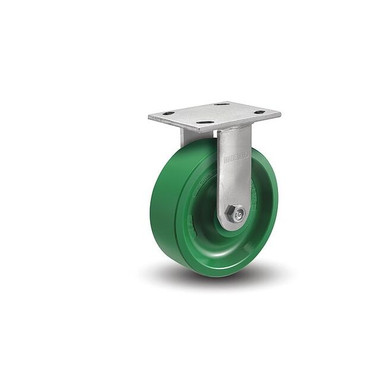

The Albion 16XI04201R is a heavy-duty caster featuring a 4" diameter X-Treme Solid Polyurethane Wheel with a roller bearing. The base plate measures 4-1/2" in length and 4" in width, and the caster has a capacity of 1000 pounds.

Rigid, Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia.

Albion . 16XI04201R

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Man, Publisher, StudioAlbion
DimensionUnitinch
GraingerSku60RP10
UPCNone
UnitOfMeasureEA
Weight3.7
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead, moq, multiple, tierMinQty1, Number of Wheels, Case, NumberOfItems, PackageQuantity1
height5.7
jsonUrlData924526ffbdad25e5923b
length4.5
MPN, Part Number, PartNumber16XI04201R
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG100712848
tierPrice152.92
urlhttps://www.zoro.com/albion-4-x-2-non-marking-polyurethane-x-treme-rigid-caster-no-brake-loads-up-to-1000-lb-16xi04201r/i/G100712848/
width, Number of Mounting Holes4
ModelALB 16XI04201R
Product Group, ProductGroupBISS
Caster Sub-TypeRigid
Load Rating1000 lb
Wheel Dia4 in
Wheel Width, Overall Wheel Width2 in
Caster Stem TypeTop Plate
Wheel Core Material, Wheel Core TypeSolid
Includes Thread Guards, With Toe PlateNo
Caster Frame MaterialSteel
Mounting Plate Bolt Hole PatternB
Mounting Height5-5/8 in
Wheel TypeSolid Polyurethane
Non-Marking, Includes Spanner BushingYes
Operating Temperature RangeUp to 180?F
Wheel/Tread MaterialPolyurethane - X-Treme
Frame ConstructionCold Formed
Swivel Radius, Swivel Lead0 in
ApplicationShop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
For Axle Dia1/2 in
Swivel Lock TypeNo Lock Included
ItemMedium Duty Industrial Plate Caster
Caster Brake TypeNo Brake Included
Swivel Raceway TypeDouble Ball
Inside Bolt Hole Spacing2-5/8 in X 3 in
Wheel/Tread Color, Core ColorGreen
Caster Product GroupRigid Caster
Mounting Bolt Dia3/8 in
Wheel/Tread Hardness RatingHard
Wheel Bearing TypeRoller
Frame FinishZinc
Outside Bolt Hole Spacing3 in X 3-5/8 in
Caster Mounting TypePlate
Mounting Plate Thickness1/4 in
Tread ShapeStandard
Wheel/Tread Hardness70D
FeaturesZinc Plating Provides An Attractive Finish Which Increases Corrosion Resistance and Provides Longer Caster Life
Mounting Plate Size4 in X 4-1/2 in
Load Rating Range1000 to 2999 lb
Hub Length2 3/16 in
Country of Origin (subject to change)United States
AsinB016082SW8
BindingMisc.
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161
FeatureCold formed from 1/4" steel plate - yoke base is notched for swivel lock
ProductTypeNameMATERIAL_HANDLING
TitleAlbion 16XI04201R 4" Diameter X-Treme Solid Polyurethane Wheel Medium Heavy Duty Rigid Caster, Roller Bearing, 4-1/2" Length x 4" Width Base Plate, 1000 lb. Capacity

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG100712848111 @ $52.92
motionindustries.com02541603111 @ $55.96
simsupply.comZO-G100712848111 @ $63.95
Grainger60RP1011
