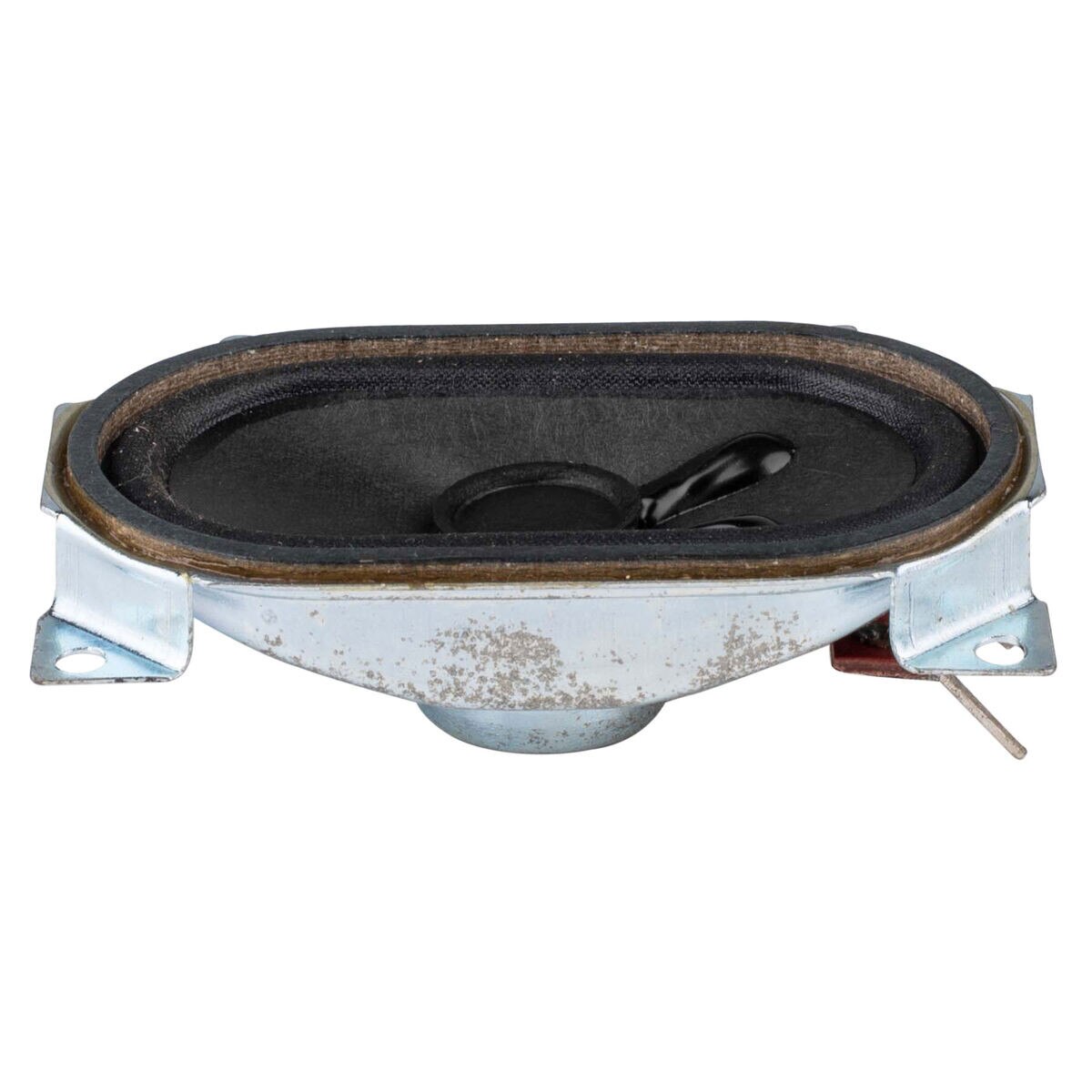

Toshiba SPK-1495AR 1-1/2" x 2-5/8" Paper Cone Full-Range Speaker

Toshiba SPK-1495AR 1-1/2" x 2-5/8" Paper Cone Full-Range Speaker. Part Number: 289-2120 by Factory Buyouts.

Factory Buyouts . YPC47F32-02S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameToshiba SPK-1495AR 1-1/2" x 2-5/8" Paper Cone Full-Range Speaker
UPC848864047829
Weight0.32
WeightUnitlbs
depth, length0.785
diameter, height, width1.625
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelYPC47F32-02S
qtyInStock0
SKU, Part Number289-2120
snippetToshiba SPK-1495AR 1-1/2" x 2-5/8" Paper Cone Full-Range Speaker. Part Number: 289-2120 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 2"
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8?
Frequency Response200 to 14,000Hz
Sensitivity78.33dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)255Hz
DC Resistance (Re)7.16?
Voice Coil Inductance (Le)0.13mH
Mechanical Q (Qms)3.46
Electromagnetic Q (Qes)5.17
Total Q (Qts)2.07
Compliance Equivalent Volume (Vas)0.0043ft?
Mechanical Compliance of Suspension (Cms)0.518mm/N
BL Product (BL)1.28T?m
Surface Area of Cone (Sd)12.94cm?
Cone Material, Voice Coil FormerPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter1.625" x 2.75"
Baffle Cutout Diameter1.375" x 2.5"
Depth0.785"
# Mounting Holes4
