AZ1117CH-2.5TRG1 Diodes Incorporated | Integrated Circuits (ICs) | DigiKey

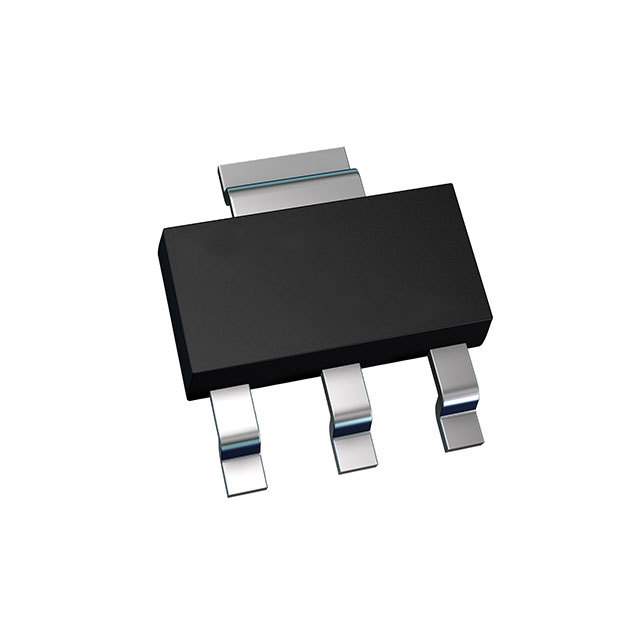

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Diodes Incorporated |
|---|---|
| Extra Product Name | AZ1117CH-2.5TRG1 Diodes Incorporated | Integrated Circuits (ICs) | DigiKey |
| atoms, moq, multiple, tierMinQty1, Number of Regulators | 1 |
| extraShipping | 0 |
| MPN | AZ1117CH-2.5TRG1 |
| packaging | Cut Tape (CT) & Digi-Reel? |
| qtyInStock | 3488 |
| SKU | 4470984 |
| snippet | Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3 |
| tierMinQty10 | 12,000 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 250 |
| tierMinQty6 | 500 |
| tierMinQty7 | 1,000 |
| tierMinQty9 | 8,000 |
| tierPrice1 | 0.48299999999999993 |
| tierPrice10 | 0.07969 |
| tierPrice2 | 0.3611 |
| tierPrice3 | 0.32521999999999995 |
| tierPrice4 | 0.22470999999999997 |
| tierPrice5 | 0.18919799999999998 |
| tierPrice6 | 0.15370899999999998 |
| tierPrice7 | 0.11824299999999999 |
| tierPrice9 | 0.08740 |
| Category | Integrated Circuits (ICs) |
| Series | AZ1117C |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max), Control Features | - |
| Voltage Dropout (Max) | 1.3V @ 800mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| PSRR | 70dB (120Hz) |
| Protection Features | Thermal Shutdown |
| Operating Temperature | -20?C ~ 125?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | AZ1117 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 4470984 | 1 | 3488 | 1 | 1 @ $0.48, 10 @ $0.36, 25 @ $0.33, 100 @ $0.22, 250 @ $0.19, 500 @ $0.15, 1000 @ $0.12 |
| Hotenda | H2788654 | 1 | 1 | 1 @ $0.08 | |
| AZ1117CH-2.5TRG1 | 5 | 2543 | 5 | 5 @ $0.23, 25 @ $0.11, 100 @ $0.10, 500 @ $0.09, 4000 @ $0.08 | |
 iodParts | AZ1117CH-2.5TRG1 | 1 | 1 | ||
 Newark | 76AH4963 | 5 | 1140 | 5 | 1 @ $0.43, 10 @ $0.24, 25 @ $0.20, 50 @ $0.17, 100 @ $0.14, 250 @ $0.13, 500 @ $0.12, 1000 @ $0.11 |
| Digi-Key | 4505205 | 1 | 459 | 1 | 1 @ $0.40, 10 @ $0.30, 25 @ $0.27, 100 @ $0.15, 250 @ $0.14, 500 @ $0.13, 1000 @ $0.10 |
| Digi-Key | 4505518 | 1000 | 3488 | 1000 | 1 @ $0.48, 10 @ $0.36, 25 @ $0.33, 100 @ $0.22, 250 @ $0.19, 500 @ $0.15, 1000 @ $0.12 |
