AZ23C5V6-E3-18 Vishay Semiconductor Diodes Division | Discrete Semiconductor Products | DigiKey

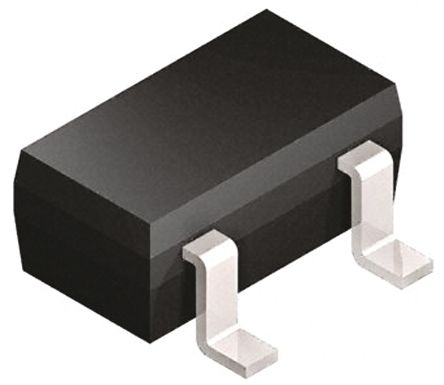

AZ23C5V6-E3-18 Dual Zener Diode, Common Anode, 5.6V 5% 300 mW SMT 3-Pin SOT-23
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Vishay Semiconductor Diodes Division |
|---|---|
| Extra Product Name | AZ23C5V6-E3-18 Vishay Semiconductor Diodes Division | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| MPN | AZ23C5V6-E3-18 |
| qtyInStock | 22501 |
| SKU | AZ23C5V6-E3-18TR-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 1,000 |
| tierMinQty6 | 2,000 |
| tierMinQty7 | 5,000 |
| tierPrice1 | 0.30000 |
| tierPrice2 | 0.24700 |
| tierPrice3 | 0.10120 |
| tierPrice4 | 0.08442 |
| tierPrice5 | 0.05865 |
| tierPrice6 | 0.05451 |
| tierPrice7 | 0.04715 |
| Category | Discrete Semiconductor Products |
| Series, Operating Temperature | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Configuration | 1 Pair Common Anode |
| Tolerance | ?7% |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Voltage - Zener (Nom) (Vz) | 5.6V |
| Power - Max | 300mW |
| Impedance (Max) (Zzt) | 40 Ohms |
| Current - Reverse Leakage @ Vr | 100nA @ 1V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ23C5V6-E3-18TR-ND | 1 | 22501 | 1 | 1 @ $0.30, 10 @ $0.25, 100 @ $0.10, 500 @ $0.08, 1000 @ $0.06, 2000 @ $0.05, 5000 @ $0.05 | |
| Allied Electronics | 70616795 | 1 | 1 | ||
 Newark | 43X2893 | 10000 | 10000 | 10000 @ $0.05, 20000 @ $0.04, 30000 @ $0.04 | |
| Newark | 09X2182 | 10000 | 10000 | 5000 @ $0.06 | |
| RS Online | 1656054 | 1 | 1 | ||
| Hotenda | H1846871 | 1 | 1 | 1 @ $0.04 | |
| 165-6054 | 10000 | 10000 | 10000 @ $0.02 | ||
| RS Delivers | 815-1109 | 1 | 1 | ||
| RS Delivers | 815-1109P | 1 | 1 | ||
| RS Online | 8151109 | 1 | 1 | ||
| us.rs-online.com | 70616795 | 1000 | 1000 | 1000 @ $0.05, 2500 @ $0.05, 5000 @ $0.05, 10000 @ $0.04 |
