EXC-CET101U Panasonic Electronic Components | Filters | DigiKey

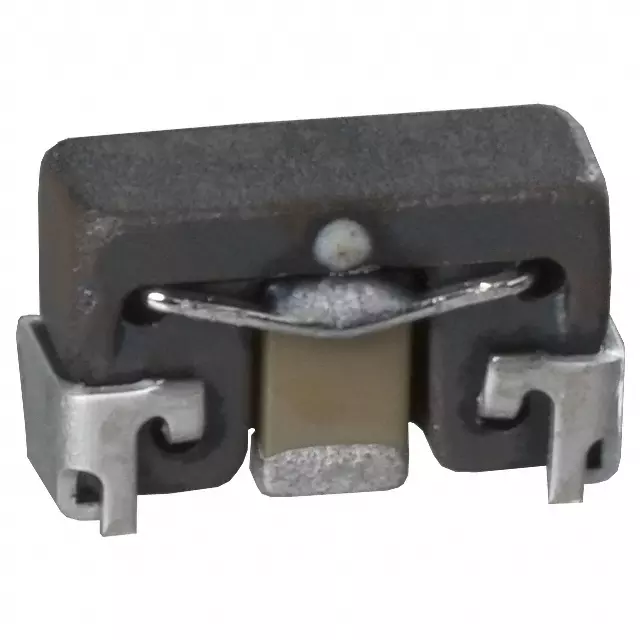

LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 100pF 2 A 1807 (4518 Metric), 3 PC Pad
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Panasonic Electronic Components |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | EXC-CET101U Panasonic Electronic Components | Filters | DigiKey |
| atoms, moq, multiple, Number of Channels | 1 |
| extraShipping, qtyInStock | 0 |
| height | 0.118 |
| height_Attrib | Height |
| MPN | EXC-CET101U |
| SKU | 137153 |
| snippet | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 100pF 2 A 1807 (4518 Metric), 3 PC Pad |
| Category | Filters |
| Series | EXCCET |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (T-Type) |
| Center / Cutoff Frequency | 135MHz (Cutoff) |
| Attenuation Value | 25dB @ 300MHz ~ 450MHz |
| Resistance - Channel (Ohms) | 0.05 |
| Current | 2 A |
| Values | C = 100pF |
| ESD Protection | No |
| Operating Temperature | -40?C ~ 85?C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 50V |
| Mounting Type | Surface Mount |
| Package / Case | 1807 (4518 Metric), 3 PC Pad |
| Size / Dimension | 0.177" L x 0.071" W (4.50mm x 1.80mm) |
| Height | 0.118" (3.00mm) |
| Base Product Number | EXC-CET |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 137153 | 1 | 1 | ||
| Digi-Key | P9827DKR-ND | 1 | 1 | ||
 Digi-Key | P9827CT-ND | 1 | 1 | ||
| SMT-55691 | 1 | 1 | 1 @ $1.54, 50 @ $1.31, 100 @ $1.15, 500 @ $1.08, 1000 @ $1.00 | ||
| Win Source | EXC-CET101U | 1 | 9969 | 1 | |
| Digi-Key | 137234 | 1 | 1 | ||
| Digi-Key | 331659 | 1 | 1 | ||
| Newark | 01X1678 | 1 | 1 | ||
| Newark | 25M9330 | 1 | 1 |
