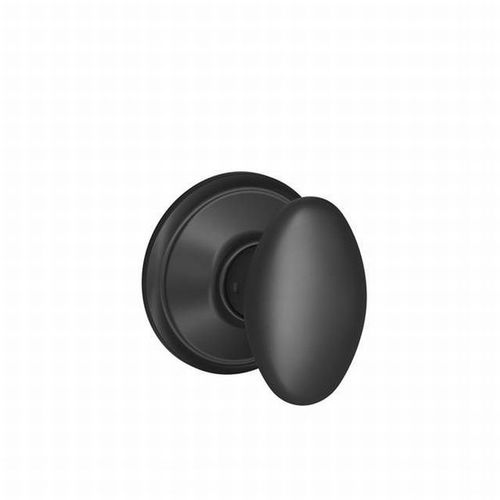

Schlage Residential F10 SIE 622 Siena Knob Passage Lock with 16080 Latch and 10027 Strike Matte Black Finish

F SeriesLever Locks The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last. Available Functions: F10/F75 ? Hall & Closet*: Both knobs/levers always unlocked F40/F76 ? Bed & Bath*: Push-button locking Can be opened from outside with small circular tool Turning inside knob/lever releases button F170 ? Non-turning*: Non-turning

Allegion . F10 SIE 622

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Residential F10 SIE 622 Siena Knob Passage Lock with 16080 Latch and 10027 Strike Matte Black Finish
atoms, moq, multiple, tierMinQty11
color, ColorFlat Black Coated
height2.75
height_AttribProduct Height
MPNF10 SIE 622
qtyInStock-2
qtySourceFieldMap
tierPrice151.28
Function10-Hall/Closet
FinishMatte Black
Backset2-3/8 Inch or 2-3/4 Inch
StrikeFull Lip 2-1/4 Inch, Radius Corner
DesignSiena Knob
Color Code622/US19/MTBK
GradeANSI/BHMA Grade 2
Finish Description, Finish FamilyBlack
Knob styleSIE-Siena
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
HandingReversible
Projection2.3750
Door Thickness, For Door Thickness1-3/8" to 1-3/4"
Knob Diameter2.7500
Bore Size2.1250
Included ComponentsPassage levers, roses, latch, strike, mounting hardware
Door Cross Bore2.125 Inch
Product MaterialZinc
Box Length8.1400
Box Width4.3700
Box Height3.0600
Strike Size1-5/8 x 2-1/4 Inch
Strike Number10-027
Faceplate Dimension1" x 2-1/4"
Door Edge Bore1 Inch
Knob Style FamilyOval Knob
Latch TypeSpring
Function DescriptionLatch retracted by knobs/levers at all times
ANSI FunctionF75
Sub-SeriesF10-SIE
Door PreparationCross Bore 2-1/8"; Edge Bore 7/8"
ADA CompliantNo
Product Height, Product Projection2-3/4 Inch
ApplicationResidential Single and Multi-Family Doors
Box Dimensions (L x W x H)3.06x4.37x8.14"
Function FamilyPassage/Hall/Closet
StandardsANSI/BHMA A156.39-2015; UL Listed
Strike TypeRadius, Full Lip
Bolt Throw1/2 Inch
WarrantyLimited Lifetime Mechanical and Finish Warranty
Strike NameRound Corner Full Lip

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareF10 SIE 6221-211 @ $51.28
