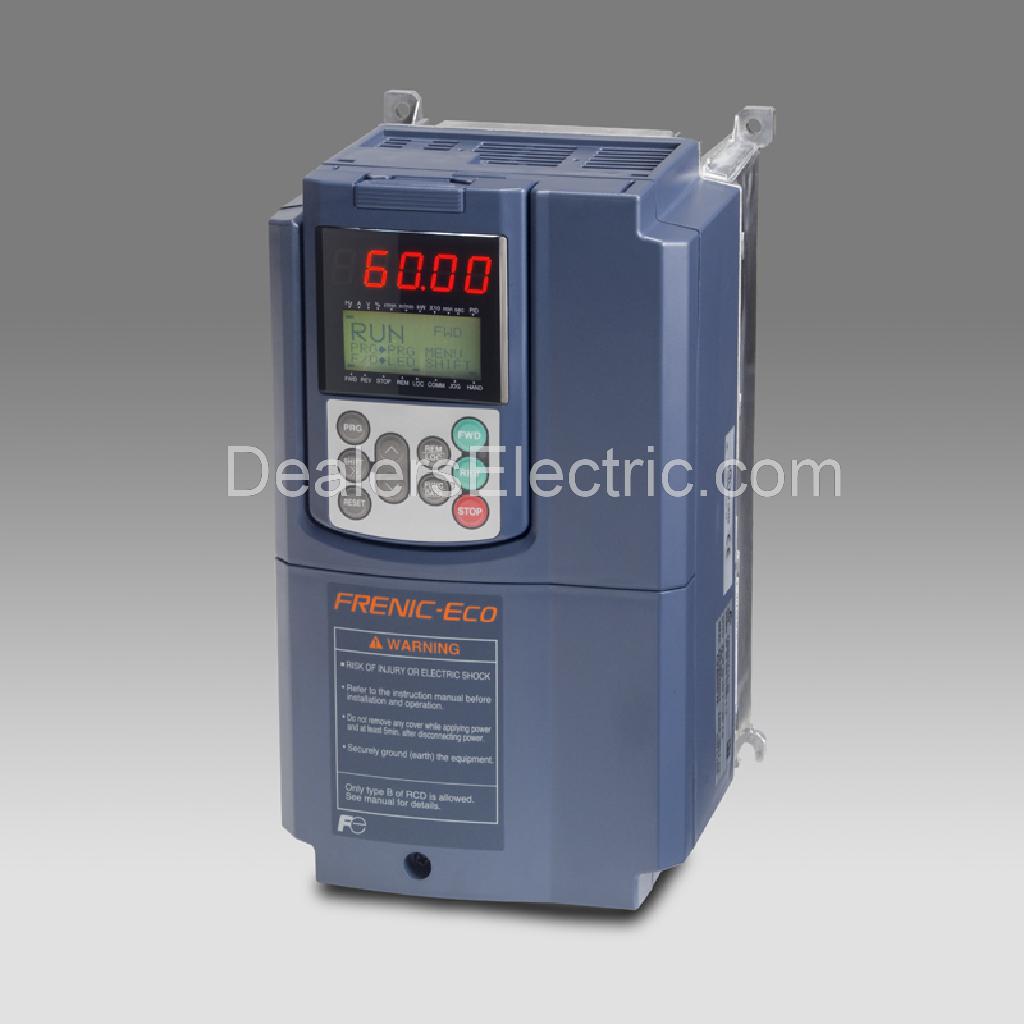

Variable Frequency Drive, Input Voltage 208V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 4.6 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 120 Hz, Enclosure Rating NEMA 1

Variable Frequency Drive, Input Voltage 208V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 4.6 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 120 Hz, Enclosure Rating NEMA 1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFuji Electric
CategoryId, CategoryIdL39958
CategoryIdL138
CategoryIdL29957
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3Variable Frequency Drives
CategoryL4NEMA-Rated Enclosure Drives
DimensionUnitinch
GTIN, UPCNone
GraingerSku4UAG6
UnitOfMeasureEA
Weight, height8.9
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
jsonUrlData924526ffbdad25e5923b
length12.9
moq, multiple, tierMinQty11
MPNFRN001F1S-2U
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG2920075
tierPrice1523.99
urlhttps://www.zoro.com/fuji-electric-variable-frequency-drive-1-hp-200-230v-frn001f1s-2u/i/G2920075/
width8
Height10.24 in
Width5.91 in
Depth6.42 in
Overall Height10 1/4 in
Overall Width5 7/8 in
Overall Depth6 3/8 in
Output Voltage240V AC
Output Phase AC, Input Phase ACThree
Adjustable Deceleration Time, Adjustable Acceleration Time0 to 3,600 sec
Accepts Input Control SignalRemote Contact
Input Frequency50/60 Hz
With Line Contactor / No Line ContactorNo Line Contactor
Dynamic Braking, Key Pad LockoutYes
StandardsUL508C, C22.2 No.14, EN50178-1997
ProtectionDrive Thermal Overload, Motor Thermal Overload, Over breaking, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Under voltage
Torque @ 1 Hz50%
EnclosureOpen
Digital ReadoutOutput Frequency, Output Current, Output Voltage
DisplaysMotor Speed With Percent, Alarm Code, Menu, Function Code
Start/Stop ControlProgrammable
For Use With3-Phase Inverter Duty Motor
