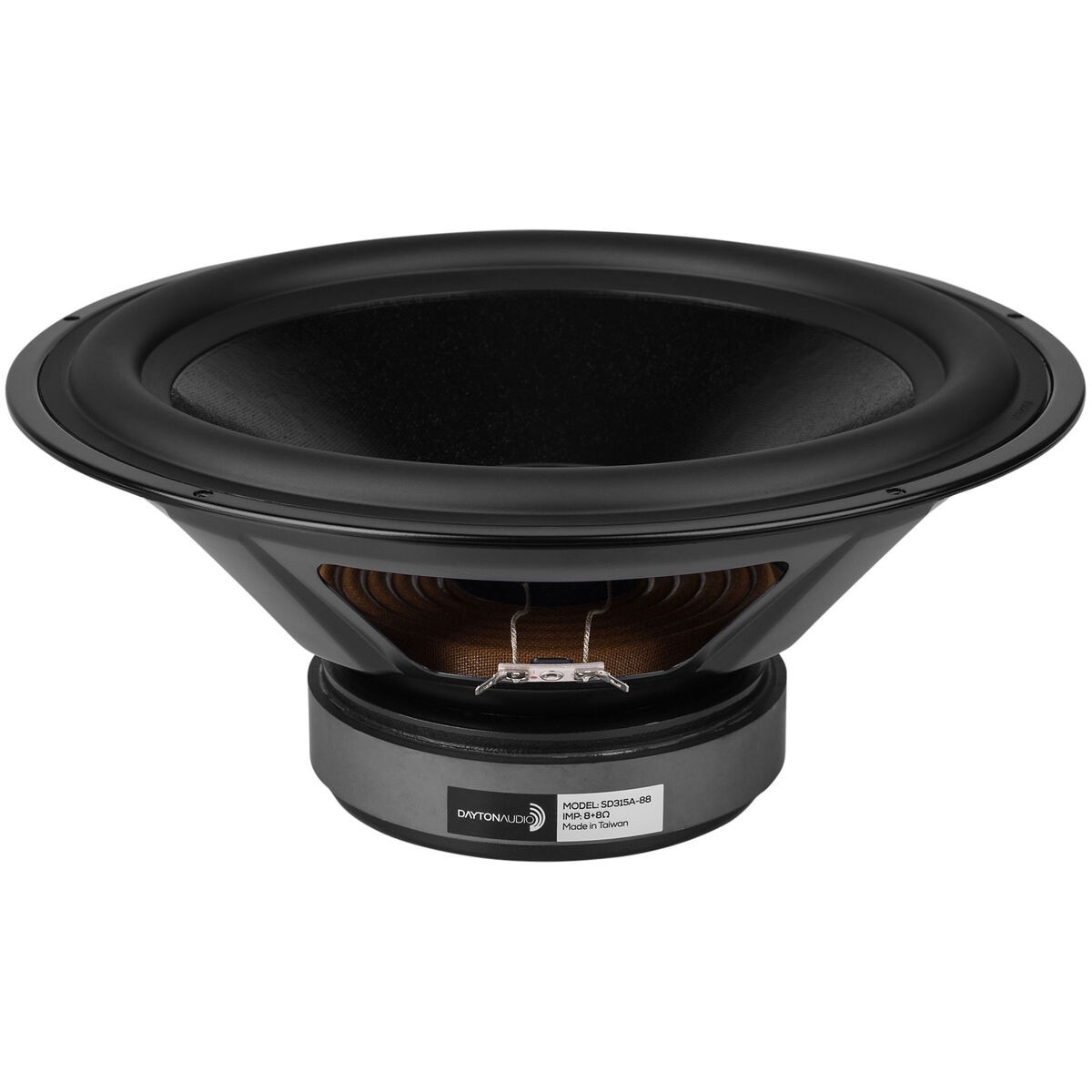

Dayton Audio SD315A-88 12" DVC Subwoofer

Dayton Audio SD315A-88 12" DVC Subwoofer. Part Number: 295-488 by Dayton Audio.

Dayton Audio . SD315A-88

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio SD315A-88 12" DVC Subwoofer
UPC844632088711
Weight10.3
WeightUnitlbs
depth, length5.12
diameter, height, width12.36
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelSD315A-88
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-488
snippetDayton Audio SD315A-88 12" DVC Subwoofer. Part Number: 295-488 by Dayton Audio.
tierMinQty24
tierMinQty310
tierMinQty450
tierPrice179.98
tierPrice277.58
tierPrice375.25
tierPrice473.75
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.96
Power Handling (RMS)120 Watts
Power Handling (MAX)240 Watts
Impedance4?
Frequency Response24 to 2,000Hz
Sensitivity93.75dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)24.2Hz
DC Resistance (Re)3.1?
Voice Coil Inductance (Le)1.5mH
Mechanical Q (Qms)3.54
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)5.36ft?
Mechanical Compliance of Suspension (Cms)0.4mm/N
BL Product (BL)11.86T?m
Diaphragm Mass Inc Airload (Mms)109.2g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)522.8cm?
Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.36"
Baffle Cutout Diameter10.71"
Depth5.12"
# Mounting Holes5
Sealed Volume1.1ft?
Sealed F358Hz
Vented Volume2.3ft?
Vented F334Hz
