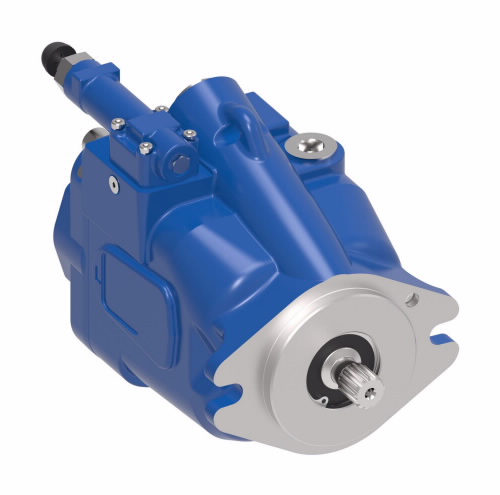

DANFOSS . 421AK00641B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDANFOSS
Extra Product NameSunSource | 421AK00641B DANFOSS Industrial Hydraulics | SunSource.com
jsonUrlDatab649ef2c-2942-4eaf-968b-ae280007ef9f
keywords4.88 CID (80 CC) (420) 421AK00641B
moq, multiple, tierMinQty11
MPN, SKU421AK00641B
qtyInStock, tierPrice10
snippet421AK00641B DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Auxiliary mounting, Control special features, Diagnostic pressure ports, Pump special features, Sub brandNone
Bearing life at rated pressure3320 hr
Code titlePressure Compensated/Pressure Flow Compensated
Continuous allowable case pressure230 bar
Controller typePressure Compensator
Design code11Second
Displacement80 cubic centimetre per revolution
Drain port size location.875-14 UNF-2B O-Ring Port - Top (28Cc and 45Cc)
EccnEAR99
Fluid cleanliness21/18/13
Front mounting2 Bolt B
Housing materialCast Iron
Icc2Mobile - OC Piston Pumps
IdentificationMark Eaton Product Number and Full Model Code On Label
Inlet pressure210 bar
Input shaft13 Tooth 16/32 Spline, Shaft Extension 41.1 [1.62]
Input speed at 0 8 bar absolute1800 revolutions per minute
Input speed at 1 0 bar absolute2200 revolutions per minute
Input speed at 2 0 bar absolute2800 revolutions per minute
Input speed maximum3600 revolutions per minute
Input speed minimum600 revolutions per minute
Main port size locationRear Ports; Suction - 2.00 SAE J518 4-Bolt Split Flange Port Standard Pressure Series (Code 61); Pressure - 1.00 SAE J518 4-Bolt Split Flange Port Standard Pressure Series (Code 61)
Maximum case drain temperature220 degree Fahrenheit
Maximum case pressure250 bar
Maximum displacement optionStandard Displacement
Maximum input power61.7 kilowatt
Maximum input torque2372 inch pound (pound inch)
Maximum pressure compensator setting213.7 bar
Maximum recommended operating viscosity40 centistokes
Minimum pressure compensator setting206.8 bar
Minimum recommended operating viscosity16 centistokes
Model CodeADU080R05AA10C28000000100100CD0B
Nominal pressure rating3335 psi
PaintBlue Primer Per Spec 209-13Cd
Peak pressure rating3625 psi
Product height7.64
Product height uom, Product length uom, Product width uominch
Product length12.02
Product trade nameX20
Product weight56.10
Product weight uompound
Product width5.75
Response Time26 millisecond
Shaft rotationRight
Shaft sealsPolyacrylate
Theoretical input torque at maximum displacement268 newton metre
Torque control setting0 inch pound (pound inch)
