PXPPAM08FBF04AST Bulgin | Connectors, Interconnects | DigiKey

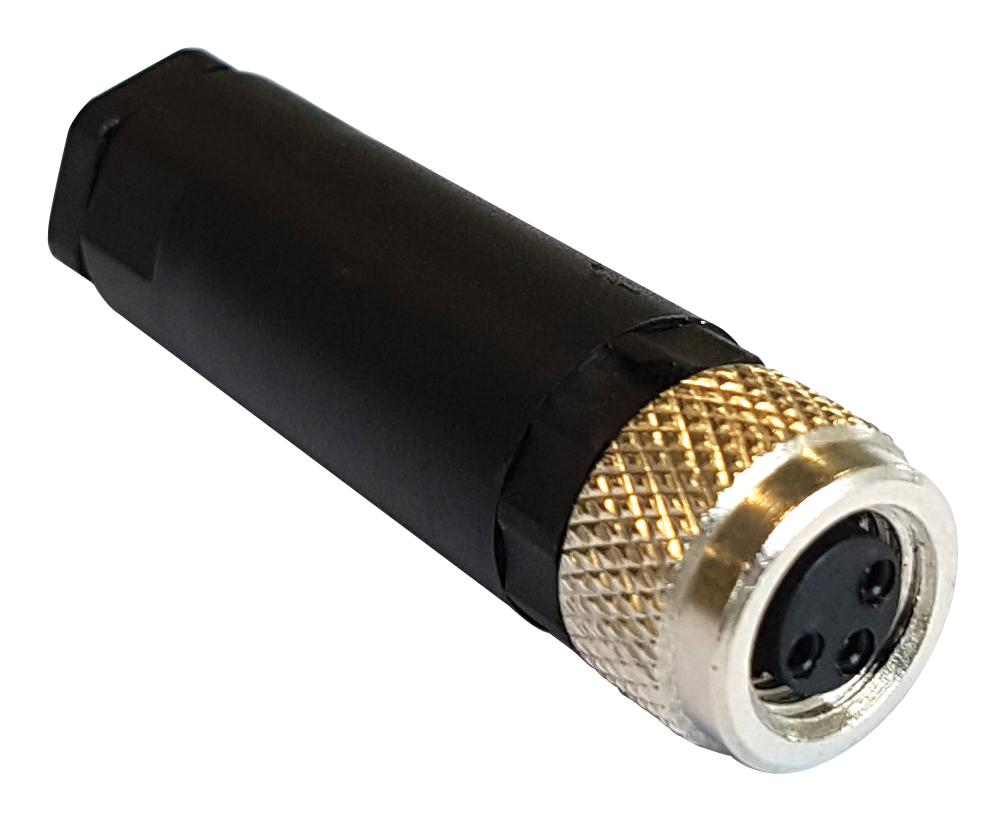

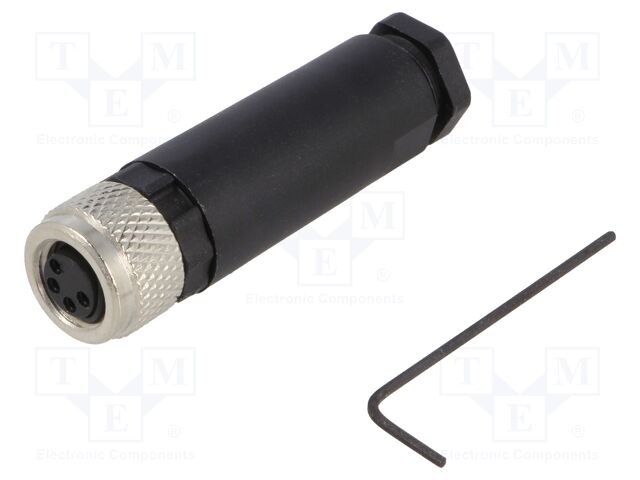

M8 Series A Code Polyamide PG7 Flex Body, 4-P Socket, Buccaneer M8 Series
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Bulgin |
|---|---|
| Extra Product Name | PXPPAM08FBF04AST Bulgin | Connectors, Interconnects | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | PXPPAM08FBF04AST |
| qtyInStock | 75 |
| SKU | 708-2254-ND |
| Part Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Shell Size - Insert | M8-4 |
| Shell Size, MIL, Mounting Feature, Material Flammability Rating, Shielding, Contact Finish Thickness - Mating, Insert Material | - |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Screw |
| Fastening Type | Threaded |
| Orientation | A |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut |
| Current Rating (Amps) | 3A |
| Voltage Rating | 30V |
| Operating Temperature | -25?C ~ 80?C |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening | 0.118" ~ 0.138" (3.00mm ~ 3.50mm) |
| Contact Material | Phosphor Bronze |
| Applications | Industrial |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 708-2254-ND | 1 | 75 | 1 | |
| Allied Electronics | 71078348 | 1 | 1 | ||
| PXPPAM08FBF04AST | 1 | 1 | 1 @ $22.83, 5 @ $20.55, 10 @ $18.26, 15 @ $15.98 | ||
| RS Delivers | 144-6717 | 1 | 33 | 1 | 1 @ $20.70 |
| AmazonSC | B07JNQFZ19 | 1 | 1 | 1 @ $23.84 | |
 Newark | 37AC2470 | 25 | 25 | 25 @ $20.55, 50 @ $19.96, 100 @ $17.61, 250 @ $16.44, 500 @ $16.09 | |
| Digi-Key | 6716428 | 1 | 1 | ||
 Newark | 17AC0588 | 1 | 25 | 1 | 1 @ $27.13, 10 @ $24.62, 25 @ $23.62, 50 @ $22.31, 100 @ $21.40, 250 @ $20.10 |
| us.rs-online.com | 71078348 | 1 | 21 | 1 | 1 @ $21.95, 10 @ $21.50, 50 @ $20.84, 100 @ $18.64, 250 @ $16.47 |
| RS Online | 1446717 | 1 | 1 |
