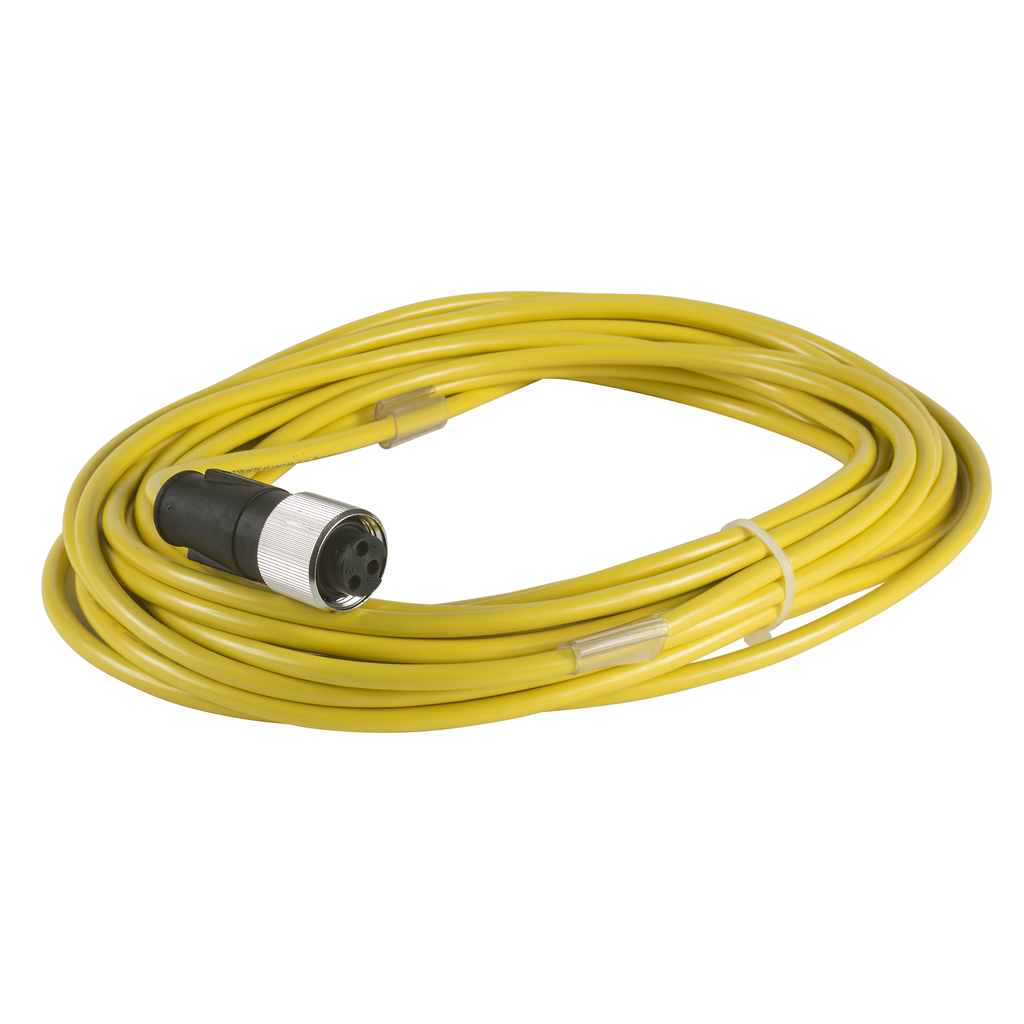

Pre wired connectors XZ, straight female, 7/8"16 UN, 3 pins, cable PUR 10 m | Mayer Electric

Mayer Electric Supply . XZCP1670L10

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitm
Extra Product NamePre wired connectors XZ, straight female, 7/8"16 UN, 3 pins, cable PUR 10 m | Mayer Electric
UPC785901389644
Weight0.82
WeightUnitkg
Weight_AttribNet Weight
diameter, height, width0.005
height_Attrib, width_AttribCable Outer Diameter
jsonUrlData/Product/SQUARE-D-Pre-wired-connectors-XZ-straight-female-7-816-UN-3-pins-cable-PUR-10-m-785901389644
length10.0
length_AttribCable Length
moq, multiple, tierMinQty11
MPNXZCP1670L10
qtyInStock0
SKUSQDXZCP1670L10
tierPrice163.20
Series Namegeneral purpose
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Categorycabling accessory
Accessory / Separate Part Typepre-wired connectors
Warranty18 months
Collar Materialmetal
Electrical Connectionstraight female connector 7/8"16 UN, 3 pins
Cable Outer Diameter5 mm
Minimum Insulating Resistance1 G?
Wire Insulation MaterialPUR
[Ue] Rated Operational Voltage250 V AC
Cable Connector Fixingscrew-on
Cable Length10 m
Line Rated Current6 A
Cable Composition3 x 0.5 mm?
Status Ledwithout
Net Weight0.82 kg
Contact Resistance5000 ?Ohm
Circularity ProfileENVEOLI1308015EN
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1308015
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
Product CertificationscULus
Ambient Air Temperature For Operation-35-90 ?C static || -5-90 ?C flexing
Ambient Air Temperature For Storage-35-100 ?C
Ip Degree Of ProtectionIP67

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXZCP1670L10111 @ $63.20
