Hamilton

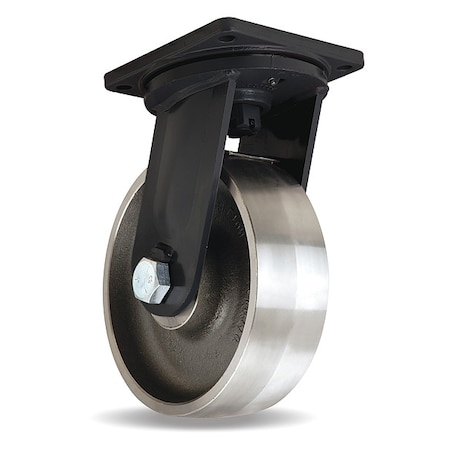

Hamilton . S-MDK-124HFSB-H4SL-HCB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA17
UnitOfMeasureEA
Weight125
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height12
jsonUrlData924526ffbdad25e5923b
length, width18
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-MDK-124HFSB-H4SL-HCB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9072242
tierPrice11534.51
urlhttps://www.zoro.com/hamilton-plate-caster-6250-lb-load-rating-s-mdk-124hfsb-h4sl-hcb/i/G9072242/
Caster Sub-TypeSwivel
Load Rating6250 lb
Wheel Dia12 in
Wheel Width, Overall Wheel Width4 in
Wheel/Tread Hardness179 BHN
Frame ConstructionForged
Mounting Bolt Dia, Mounting Plate Thickness5/8 in
Frame FinishEnamel
Caster Mounting TypePlate
Tread ShapeStandard
Load Rating Range6000 lb and Greater
Non-Marking, With Toe Plate, NSF Listed, Includes Mounting Fasteners, Leveling Caster, Includes Thread GuardsNo
Swivel ConstructionKingpinless
Wheel/Tread Material, Caster Frame MaterialSteel
Caster Product GroupKingpinless Caster with 4-Position Directional Lock and Brake
Swivel Raceway TypeSingle Ball
StandardsICWM
Operating Temperature Range-50 Degrees to 200 Degrees F
Mounting Height15 1/2 in
Wheel TypeFlat-Free
FeaturesDurable, High Heat, Quiet Operation, Reliable
Wheel/Tread Hardness RatingExtra Hard
Tire StyleTubeless
Swivel Radius9 1/2 in
ESD Conductive, Includes Spanner BushingYes
Swivel Bearing Seal TypeOpen
Brake LocationFace
Mounting Plate Size8 1/2 in x 8 1/2 in
Mounting Plate Bolt Hole PatternD
Core Color, Wheel/Tread ColorSilver
Outside Bolt Hole Spacing, Inside Bolt Hole Spacing7 in x 7 in
Frame ColorBlack
Swivel Lock Type4-Position Swivel Lock
Swivel Lead3 1/4 in
ItemHeat-Resistant Standard Plate Caster
TreadFlat
For Surface TypeConcrete
Wheel Bearing MaterialStainless Steel
Number of Mounting Holes4
Caster Brake TypeFace Contact Brake
Wheel Core TypeSolid
Wheel Bearing TypePrecision Ball
SeriesMagmaMax
For Axle Dia1 1/4 in
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Core MaterialForged Steel
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9072242111 @ $1534.51
Grainger55HA1711
