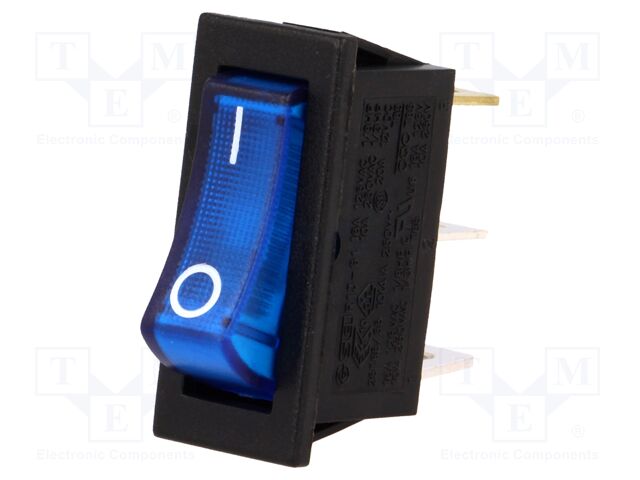

SCI R13-91B-01-BBL-2D-N-2 | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; blue; neon lamp; 250V; 50m?

SCI R13-91B-01-BBL-2D-N-2 | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; blue; neon lamp; 250V; 50m

SCI . R13-91B-01-BBL-2D-N-2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSCI
CategoryL1Switches and Indicators
CategoryL2Rocker Switches
DimensionUnitmm
Extra Product NameSCI R13-91B-01-BBL-2D-N-2 | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; blue; neon lamp; 250V; 50m?
atoms, moq, multiple, tierMinQty11
diameter, length, width30.4
jsonUrlData7d7ea2db81e892c2c53a2435f39e491c.
jsonUrlData25b3cea76394600f09cf4
keywordsSCI, R13-91B-01-BBL-2D-N-2, RS1391BBBL2N2, Switches and Indicators, Rocker Switches
length_Attrib, width_AttribMounting hole diameter
MPNR13-91B-01-BBL-2D-N-2
qtyInStock798
SKURS1391BBBL2N2
snippetSCI R13-91B-01-BBL-2D-N-2 | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; blue; neon lamp; 250V; 50m
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5200
tierPrice12.93
tierPrice22.33
tierPrice31.96
tierPrice41.6
tierPrice51.38
Type of switchROCKER
Contacts configurationSPST
Number of positions, Stable positions number2
Switching methodON-OFF
AC contacts rating @R10A / 250V AC
Key button colour, Backlight colourblue
Illuminationneon lamp
Illumination voltage250V
Max contact resistance:50m?
Body colourblack
Body materialpolyamide
Flammability ratingUL94V-2
Operating temperature-20...85?C
Leadsconnectors 6,3x0,8mm
Panel thicknessmax. 3mm
Electrical life6000 cycles
Mounting hole diameter30.4x11.2mm
Button markingO-I
Shaperectangular
Manufacturer seriesR13-91-AC

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERS1391BBBL2N2179811 @ $2.93, 5 @ $2.33, 20 @ $1.96, 100 @ $1.60, 200 @ $1.38
