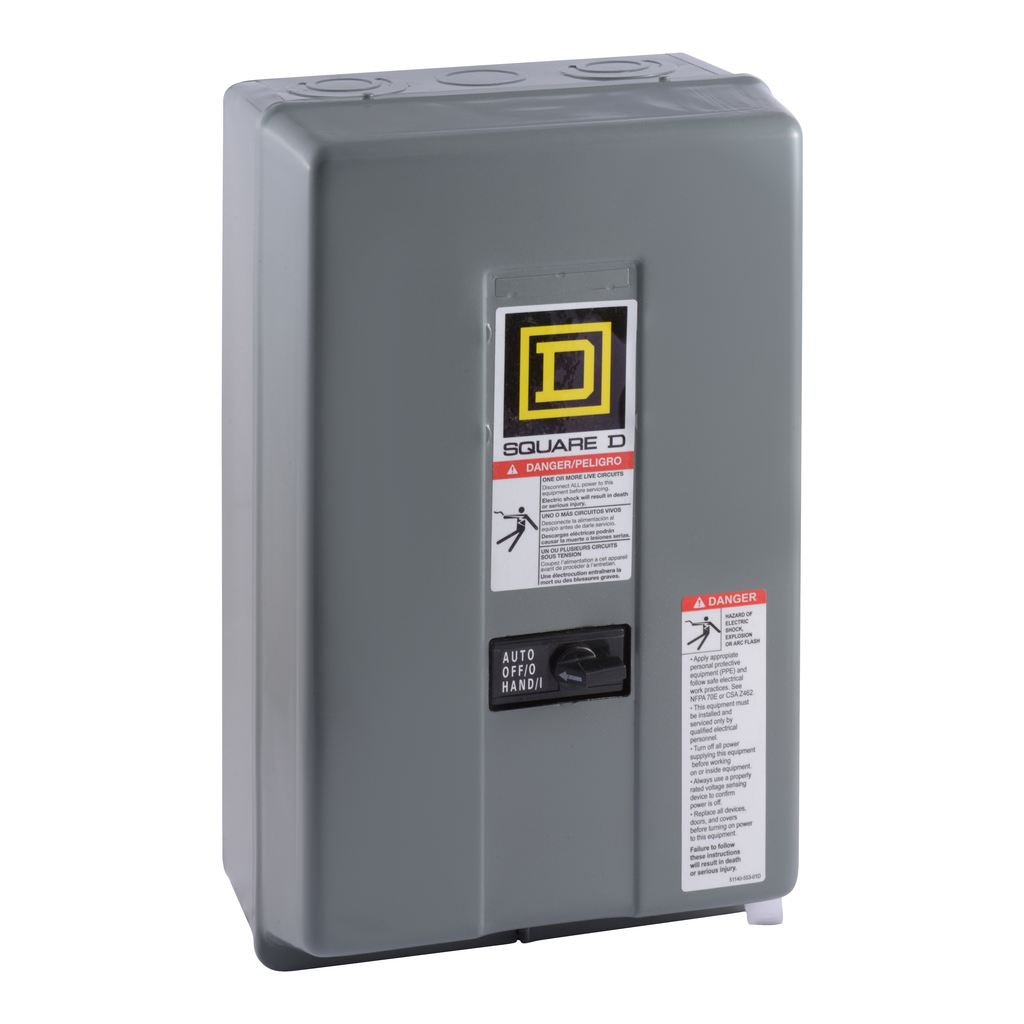

LIGHTING CONTACTOR 600VAC 30A LX | Mayer Electric

SQUARE D . SQD8903LXG40V04CR6

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameLIGHTING CONTACTOR 600VAC 30A LX | Mayer Electric
UPC, MPN, SKUSQD8903LXG40V04CR6
depth, length153.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-LIGHTING-CONTACTOR-600VAC-30A-LX-SQD8903LXG40V04CR6
jsonUrlData265bcafc8-0e88-422b-b0c5-aeea0056a409
length_AttribDepth
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.0
width198.0
width_AttribWidth
Range Of Product8903LX
Control Circuitseparate control circuit
Product Or Component TypeMechanically Held Lighting Contactor
Warranty18 months
Local Signallingno indicator
Height322 mm
Control Typeselector switch HAND-OFF-AUTO)
[Uc] Control Circuit Voltage277 V AC 60 Hz
Electrical Connectionscrew-clamp terminals
Width198 mm
Depth153 mm
Line Rated Current20-20 A tungsten || 30-30 A fluorescent
Inrush Power In Va150-150 VA 60 Hz || 25-25 VA 50/60 Hz
Poles Description4P 4 NO
Additional Included Device2P relay (1 NO + 1 NC)
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1407018EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free plastic parts product
Product CertificationsUL Listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
