Order YA30LTC38FX90 by Burndy Cu Tubing Compression Terminal, 1 Hole, (Pack of 50 pcs) - US Mega Store

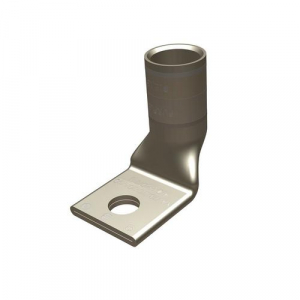

Burndy, YA30LTC38FX90, Cu Tubing Compression Terminal, 1 Hole w/ Inspection Window, 250 Flex Class G,H, 3/8" Stud, 90 Deg Bent, Standard Barrel.

Burndy . YA30LTC38FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA30LTC38FX90
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA30LTC38FX90 by Burndy Cu Tubing Compression Terminal, 1 Hole, (Pack of 50 pcs) - US Mega Store
diameter, length0.81
height1.89
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA30LTC38FX90
qtyInStock-2
qtySourceFieldMap
snippetBurndy, YA30LTC38FX90, Cu Tubing Compression Terminal, 1 Hole w/ Inspection Window, 250 Flex Class G,H, 3/8" Stud, 90 Deg Bent, Standard Barrel.
tierPrice130.78
width1.2
width_AttribDimension - Pad Width inch
Color CodeYellow
Connector TypeTerminal
Die Index16
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
Dimension - B Length inch1.03 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction3/8
Dimension - Height inch1.89 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm35 mm
Dimension - Length Overall inch1.36 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.81 in
Dimension - Pad Width inch1.20 in
Dimension - Strip Length inch1-1/16
Dimension - Z inch0.42 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Str Size250 kcmil
Conductor - Copper Str Size Range300 kcmil
