OMRON G2R-2-S 12VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5A

OMRON G2R-2-S 12VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5

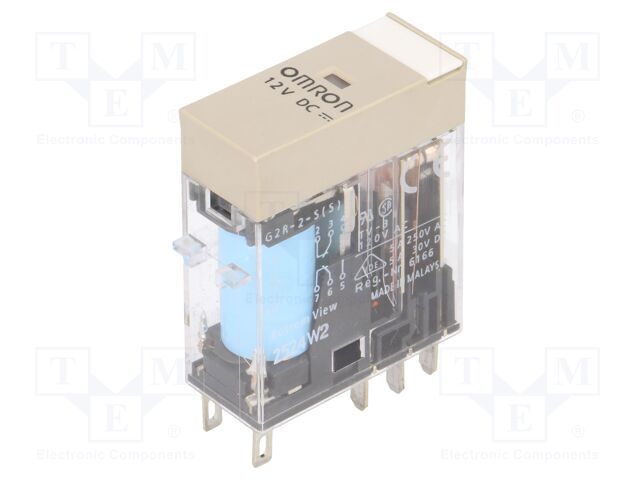

OMRON . G2R-2-S 12VDC (S)

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Industrial Electromagnetic Relays
Extra Product NameOMRON G2R-2-S 12VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5A
atoms, moq, multiple, tierMinQty11
jsonUrlDatae3693370e0f68aab201a30dba625dc82.
jsonUrlData2dca6895e20cb868d6a81
keywordsOMRON, G2R-2-S 12VDC (S), G2R-2-S-12DC
MPNG2R-2-S 12VDC (S)
qtyInStock8
SKUG2R-2-S-12DC
snippetOMRON G2R-2-S 12VDC (S) | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice111.59
tierPrice210.54
tierPrice38.22
tierPrice47.64
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage12V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 125V DC,
Relay variantindustrial,
Mountingsocket
Relay seriesG2R-2-S
Operating temperature-40...70?C
Body dimensions29x13x35.5mm
Coil resistance275?
Operate time15ms
Release time5ms
Coil current43.6mA
Contact resistance30m?
Coil power consumption530mW
Switching capacity150W,
Terminal pitch5mm
Related itemsP2R-08A,

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG2R-2-S-12DC1811 @ $11.59, 5 @ $10.54, 25 @ $8.22, 100 @ $7.64
Newark71AH444111
